Executing complex industrial drone operations requires shifting our focus from the aircraft itself to the tactical systems bolted onto its airframe. In the high-stakes sectors of public safety, maritime surveillance, border patrol, and critical infrastructure defense, the raw flight platform is merely an autonomous transit vehicle. The true commercial value, situational intelligence, and operational capabilities are dictated by specialized, integrated peripheral hardware. At the absolute forefront of tactical security payloads stands CZI (Chengzhi Intelligence), a global pioneer in heavy-duty acoustic loudspeakers, high-intensity hunting searchlights, and dual-function emergency signaling modules. When field crews require ultra-long-range optical tracking, high-magnification electro-optical zooming, and thermal target pinpointing, they pair their custom multirotors or VTOLs with ViewPro, a world-renowned manufacturer of professional multi-sensor stabilized gimbal cameras. This engineering blueprint provides procurement officers and drone fleet managers with an exhaustive technical evaluation of these two prominent payload ecosystems.

What are the leading tactical and tracking UAV payloads?

Industrial drone engineering has matured into a strictly mission-driven discipline. Modern emergency response teams and infrastructure operators no longer view the drone as a standalone product. Instead, they treat it as an open, adaptive sky platform that must be custom-configured for distinct real-world problems. For example, during a night-time missing persons search or a crowd control operation, standard cameras are entirely ineffective without specialized tactical components designed to project sound, emit high-intensity light, or track targets across several kilometers.

By implementing a payload strategy centered around modular industry standards like DJI SkyPort V2, open MAVLink architectures, and standard gSBUS connections, companies can decouple their hardware procurement cycles. Instead of buying individual single-purpose aircraft for different divisions, a central engineering hub can manage a uniform fleet of heavy-lift commercial drones. This allows technicians to hot-swap between a CZI searchlight and a high-magnification ViewPro thermal tracking camera in less than thirty seconds right on the bed of a field transport vehicle. This approach maximizes aircraft utilization rates and slashes total corporate equipment costs.

CZI Tactical Payload Ecosystem: Sound and Light Enforcement

The engineering team at CZI has established a dominant market position by mastering the physics of long-range acoustic projection and high-output LED illumination within the strict weight and power limits of drone platforms. Their components are highly regarded for turning standard commercial drones into proactive tools capable of directly interacting with people on the ground.

Long-Range Acoustic Messaging Modules

Traditional compact drone speakers suffer from severe sound distortion and drastic volume drops when exposed to propeller noise and high-altitude crosswinds. CZI bypassed this acoustic barrier by creating the MP130 V2 and TH4 V2 long-range acoustic devices (LRAD). Utilizing advanced acoustic algorithms and specialized compression driver horns, these devices project clear voice instructions, pre-recorded warning sirens, or emergency alerts over distances exceeding 500 meters at a staggering 130 decibels. The system integrates directly with ground-based hand-held walkie-talkies or smartphone apps via encrypted digital channels, enabling real-time, low-latency voice broadcasts from operators to distant targets during hostage negotiations or natural disaster evacuations.

High-Intensity Airborne Searchlight Systems

For night operations, illumination is a critical safety requirement. The CZI GL60 Plus and GL10 series utilize a matrix of high-power LED chips paired with a sophisticated multi-lens optical design to cast an incredibly sharp, high-intensity column of light down to the ground. Delivering up to 24,000 lumens of brightness with an effective illumination distance of over 150 meters, these searchlights feature an integrated single-axis or dual-axis mechanical gimbal. This allows the light beam to automatically sync with the movement of the drone’s main thermal camera, ensuring that as the operator tracks a moving target, the searchlight automatically follows along, keeping the subject brightly illuminated at all times.

ViewPro Optical-Thermal Gimbal Ecosystem: Precision Long-Range Tracking

When an industrial mission moves past simple close-range visual inspection to require tracking targets across kilometers, basic wide-angle cameras become a significant liability. ViewPro satisfies this high-end tracking market by manufacturing professional, multi-sensor stabilized gimbal camera pods. These advanced systems are highly trusted by international border patrol teams, coast guards, and pipeline inspection companies for their exceptional long-range visual clarity.

Multi-Sensor Electro-Optical (EO) and Infrared (IR) Architecture

The standard ViewPro product blueprint centers around consolidating multiple independent imaging sensors into a single, aerodynamically streamlined 3-axis stabilized housing. Systems like the ViewPro Q30T and Z30TM combine a high-sensitivity Sony 1/2.8-inch CMOS sensor—capable of delivering 30x or 40x continuous optical zoom—alongside an uncooled long-wave infrared (LWIR) radiometric thermal imaging core. This multi-sensor configuration allows operators to monitor wide areas using standard daylight optical feeds, and then instantly switch to a thermal view to track heat signatures through total darkness, heavy ground fog, or thick brush.

Intelligent AI Object Tracking and Laser Rangefinding

ViewPro separates itself from consumer hardware by embedding dedicated hardware-level AI processing boards directly into the gimbal assembly. This enables advanced, autonomous object tracking algorithms. An operator can touch a moving object on their ground control screen—such as a speeding vehicle, a vessel at sea, or a localized wildfire hotspot—and the internal AI tracking processor takes over control of the gimbal’s brushless motors. The system automatically adjusts its pitch and yaw to keep the target dead-center in the frame, even if the drone is performing aggressive maneuvers or flying at high speeds. This tracking capability is frequently paired with high-performance Laser Rangefinders (LRF) that instantly calculate the target’s exact real-time GPS coordinates, distance, and relative altitude up to 3,000 meters away, passing this critical data back to command software.

International Export Controls and Shipping Compliance

CZI Dual-Use Acoustic and Illumination Shipping Frameworks

Because the acoustic and illumination systems engineered by CZI are widely deployed by law enforcement, anti-riot police forces, and military border units, they fall under global dual-use item export regulations. When shipping these components from manufacturing centers across international borders, customs agencies require clear documentation specifying the end-user profile and intended industrial application.

To keep transit pipelines moving smoothly, logistics teams must properly categorize these tactical accessories under correct Harmonized System (HS) codes, separating them from simple consumer electronics. For countries maintaining strict security import frameworks, providing an explicit End-User Certificate (EUC) confirming the equipment will be used for civil infrastructure maintenance, public park forestry management, or civilian search and rescue is essential to avoid lengthy customs seizures or regulatory reviews.

ViewPro High-Magnification Gimbals and International ITAR/EAR Parallel Regulations

ViewPro’s global distribution network operates under international export compliance parameters that depend strictly on the optical magnification power and thermal sensor specifications of each individual model. Gimbal pods carrying 30x, 40x, or higher optical zoom lenses paired with high-frequency thermal imaging cores are heavily scrutinized due to their potential applications in tactical surveillance and defense intelligence mapping.

For shipments destined for the North American or European markets, procurement teams must ensure the internal thermal sensor cores align with local civilian trade laws. If a ViewPro gimbal features an uncooled thermal core operating above 9 Hz, it may require explicit export clearance from regional ministries of commerce. To assist global distributors, the manufacturer provides customized models configured with 9 Hz slow-frame thermal cores or pure optical daylight sensors. These versions bypass complex international defense-item import locks, ensuring quick compliance and smooth border transitions.

In-Depth Pros and Cons for Enterprise Operations

CZI Tactical Accessories

The Advantages: The primary engineering benefit of choosing these tactical tools is their unparalleled integration within major industrial platform ecosystems. Built to fully support DJI’s Payload Software Development Kit (PSDK), these devices draw operational power and exchange command signals directly through the drone’s primary landing gear ports. This eliminates the need to configure complicated external battery packs or mount clunky secondary remote antennas on the controller. The ground operator manages the searchlight angles and loudspeaker broadcasts directly inside standard, familiar flight software like DJI Pilot 2.

The Drawbacks: The primary challenge when mounting these large acoustic and light pods is their significant impact on the drone’s overall aerodynamics and battery endurance. The wide, boxy shapes of high-intensity searchlights and compression horns act like small sails in the sky. When flying through strong crosswinds, this extra aerodynamic drag forces the drone’s flight motors to work much harder to maintain stability. This increased power draw can cut total flight times by 15% to 25%, requiring mission planners to shorten their flight routes accordingly.

ViewPro Stabilized Gimbals

The Advantages: The defining technical advantage of this platform is the sheer quality and speed of its hardware-level stabilization and optical clarity. Their high-torque brushless gimbals operate with an absolute stabilization accuracy of ±0.01 degrees, allowing the camera to output crystal-clear, vibration-free video streams even when zoomed in at 30x magnification. Furthermore, their open communication architecture makes them highly compatible with third-party VTOL fixed-wing drones running open-source ArduPilot or PX4 software, providing excellent system flexibility for custom developers.

The Drawbacks: This exceptional combination of multiple sensors, heavy optical glass, and high-torque stabilization motors makes the overall gimbal pod relatively heavy. Some advanced tri-sensor modules weigh between 1.2 and 1.8 kilograms. This substantial payload weight demands an industrial airframe with a robust Maximum Takeoff Weight (MTOW) capacity. Additionally, configuring the open-source MAVLink command strings to control advanced tracking features on custom ground stations requires experienced software technicians, making the initial setup more complex than consumer plug-and-play drones.

Tactical and Industrial Mission Scenarios

1. Night Search and Rescue (SAR) in Rugged Terrain

When a hiker goes missing in a dense mountain valley after dark, traditional rescue teams face dangerous ground terrain and zero visibility. Deploying an industrial enterprise drone equipped with a ViewPro dual-sensor gimbal and a CZI high-intensity searchlight fundamentally transforms the speed and safety of the rescue mission.

The drone maps the mountain paths using the thermal sensor core to scan for human heat signatures through the dark. Once a thermal anomaly is identified, the operator switches to the high-magnification optical camera and activates the synchronized searchlight. The searchlight immediately points down, illuminating the target area with up to 24,000 lumens of light so the team can visually confirm the person’s condition. The pilot can then use the integrated loudspeaker to broadcast clear voice messages down to the individual, letting them know that a rescue team has their coordinates and is currently navigating to their position, keeping the victim calm and informed.

2. Offshore Maritime Surveillance and Vessel Interception

Coast guards and maritime border protection agencies face massive challenges when trying to track un-cooperative watercraft, illegal fishing boats, or smuggling vessels operating at sea in rough weather. These fast-moving targets can easily evade standard coastal radar networks or hide in wide ocean expanses.

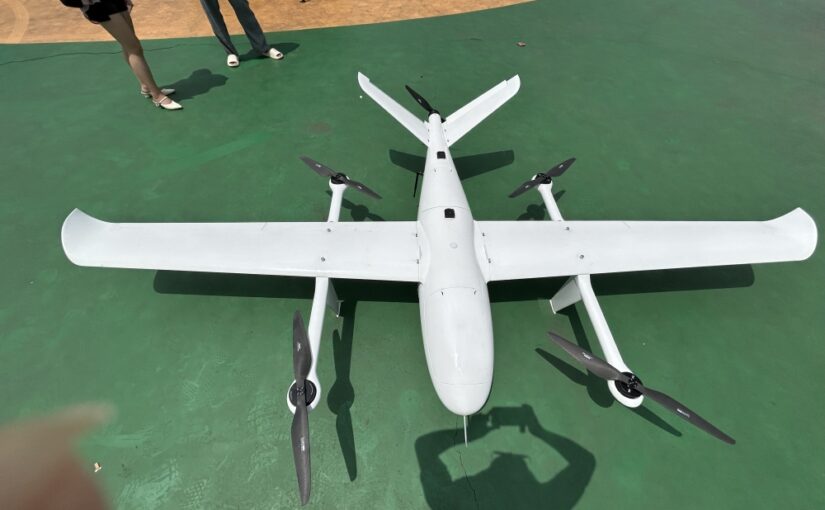

Deploying long-range VTOL fixed-wing drones equipped with AI-powered tracking gimbals allows security agencies to monitor ocean corridors with incredible efficiency. Flying high above waves and low-altitude sea fog, the camera’s internal AI algorithm locks onto a suspicious vessel’s hull. Even as the boat pitches aggressively through high waves and the drone battles strong ocean crosswinds, the stabilized brushless motors keep the optical zoom lens perfectly centered on the target. The integrated laser rangefinder continuously calculates the vessel’s exact coordinates, heading, and speed, streaming this vital telemetry directly to interceptor boats to ensure a precise, coordinated intercept.

3. Critical Infrastructure Perimeter Security and Anti-Trespass Enforcement

Vast industrial facilities—such as nuclear power plants, regional oil refineries, and cross-country seaport yards—face constant security threats from trespassers, industrial espionage, and perimeter breaches. Relying entirely on fixed ground cameras leaves significant blind spots along long fence lines.

By deploying autonomous security drones equipped with integrated optical-thermal cameras and tactical sirens, facilities can establish a highly responsive, mobile perimeter defense network. When a ground fence sensor triggers a perimeter alert, the security drone automatically launches and flies directly to the breach coordinates. Using its thermal tracking core, the drone locates the intruder through darkness or camouflage. Once locked on, the drone activates its high-intensity searchlight to eliminate the cover of darkness, while the high-decibel loudspeaker broadcasts automated warning commands to deter the trespasser. This active response frequently neutralizes the security threat before the individual can penetrate deeper into sensitive areas of the facility.

Hardware Specification and Compatibility Matrix

To assist system integrators and fleet procurement officers in designing an optimized hardware configuration, the table below compares the physical requirements, weight characteristics, and electrical power demands of these primary tactical components.

Payload Brand & Model	Physical Weight (Grams)	Peak Power Demand (Watts)	Primary Integration Interface	Core Functional Target
CZI MP130 V2 Speaker	545g	35W	DJI SkyPort V2 / Type-C PSDK	Long-range acoustic broadcasting (500m+ range)
CZI GL60 Plus Searchlight	750g	120W (Peak)	DJI PSDK / Extended XT60 Power	High-intensity synchronized illumination (24,000 lm)
ViewPro Q30T Gimbal	1220g	18W (Average)	MAVLink / gSBUS / Ethernet / HDMI	30x Optical zoom tracking, day/night reconnaissance
ViewPro Z30TM Tri-Sensor	1450g	25W (Peak)	MAVLink / CAN / PWM / HD-SDI	30x Zoom EO + LWIR Thermal + 3km Laser Rangefinder
