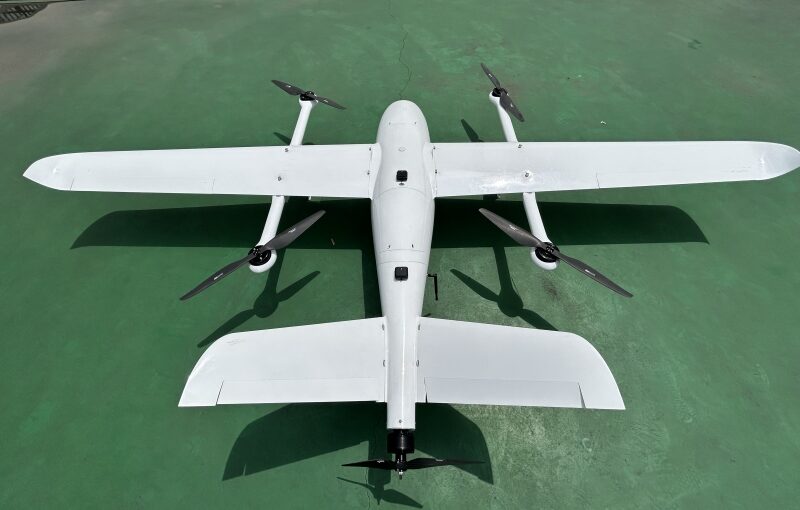

Managing large-scale earthwork moving, mining extraction, quarry inventory tracking, and civil construction grading requires absolute financial control over material quantities. Historically, stockpile measurements and cut-and-fill calculations relied on manual ground surveys utilizing total stations or GPS rover rods—a process prone to interpolation errors, severe safety risks around heavy machinery, and slow data delivery. The advent of high-precision enterprise unmanned aerial vehicles (UAVs) equipped with Real-Time Kinematic (RTK) differential positioning has fundamentally transformed volumetric management. However, moving from traditional land surveying to drone-based photogrammetry requires understanding the mathematical precision required for volume calculations, the exact vertical accuracy thresholds that govern volumetric margins of error, and the operational time savings generated across every phase of site surveying.
Table of Contents
- 1. What accuracy level does a drone map need for volume calculations?
- 2. How much time does an RTK drone save compared to traditional surveying?
- 3. The Mathematics of Volumetric Errors: How Vertical Offset Multiplies
- 4. Step-by-Step Workflow Breakdown: Traditional Ground vs. RTK Drone Surveying
- 5. Volumetric Surveying Method Comparison Matrix
- 6. Frequently Asked Questions (FAQ)
What accuracy level does a drone map need for volume calculations?
Answer for Featured Snippet: For accurate volumetric calculations, a drone map requires a **relative horizontal accuracy (GSD) of 1 to 3 centimeters** and a **vertical (Z-axis) accuracy of 2 to 5 centimeters (0.07 to 0.16 feet)**. Maintaining vertical accuracy within this 2 to 5 cm threshold ensures overall volume estimation errors remain below 1% to 3% for typical industrial stockpiles and earthwork cut-and-fill surveys.
In aerial photogrammetry and LiDAR surveying, volumetric calculations are performed by taking a high-density 3D surface mesh (Digital Elevation Model or point cloud) generated from aerial imagery and comparing it mathematically against a baseline surface layer. This baseline surface can be a pre-excavation initial terrain model, a flat digital plane, or a previous month’s survey model. Because volume calculations represent three spatial dimensions ($V = \text{Area} \times \text{Height}$), horizontal precision and vertical accuracy affect volumetric data differently.
Horizontal ground sampling distance (GSD) dictates how clearly the boundary of a stockpile or excavation pit can be outlined (the toe and crest lines). A horizontal accuracy of 1 to 3 cm ensures that the perimeter boundary of the material is digitized precisely. However, vertical (Z-axis) elevation accuracy is the most critical factor in volumetric integrity. Because elevation offsets are multiplied across the entire surface area of a stockpile, even minor vertical systematic errors cause substantial volume discrepancies.
To achieve commercial inventory audit standards (such as monthly financial reporting in gravel quarries or coal yards), the overall volumetric margin of error should not exceed **1% to 3%**. Achieving this tight percentage threshold requires an absolute vertical precision of **2 to 5 centimeters** across the entire digital elevation model. If vertical accuracy degrades beyond 10 centimeters (0.33 feet), the resulting volume estimates will suffer significant percentage errors, causing major discrepancies during financial asset reconciliation.
How much time does an RTK drone save compared to traditional surveying?
Answer for Featured Snippet: An RTK drone **reduces total survey operational time by 75% to 90%** compared to traditional ground methods. Mapping a 100-acre site with traditional GNSS rover rods or total stations requires 16 to 24 man-hours of manual field labor. In contrast, an RTK drone completes the data collection flight in 25 to 30 minutes, cutting total field time to under 1.5 hours while providing a 100x denser surface dataset.
Evaluating time savings requires analyzing the three operational phases of a land survey: pre-flight site preparation, active field data collection, and office data processing. Traditional land surveying techniques—such as setting up optical total stations or walking grid lines with GNSS RTK rover poles—are inherently constrained by physical human movement. A field crew must walk across hazardous, uneven terrain, physically climbing over steep stockpile slopes or navigating active haul roads surrounded by moving earthmoving equipment.
For a typical 100-acre industrial site or mining pit, a two-person ground crew walking 15-meter grid intervals can capture roughly 300 to 500 individual spot elevation points per day. This field effort consumes **16 to 24 man-hours** (spread across two to three full working days). Furthermore, because spot elevation points are spaced meters apart, the software must interpolate (guess) the terrain shape between points, introducing secondary modeling errors on irregular material surfaces.
An enterprise RTK drone completely transforms these site logistics. Because the drone receives real-time centimeter-level differential corrections from an active GNSS base station or network NTRIP stream, the need to lay and survey dozens of physical Ground Control Points (GCPs) across the active site is eliminated. A single certified drone pilot can execute the entire field operation in less than **1.5 hours total site time**, including setup, safety checks, and a 25-to-30-minute flight. In that single 30-minute mission, the aircraft captures millions of surface elevation points rather than hundreds. When factoring in automated photogrammetry stitching software, total project turnaround time shrinks from days to hours, allowing survey managers to deliver final volumetric reports on the same day data is captured.
The Mathematics of Volumetric Errors: How Vertical Offset Multiplies
To understand why survey managers emphasize vertical accuracy over horizontal detail, one must examine how elevation shifts compound mathematically across large surface areas.
Consider a typical industrial stockpile covering a circular base area with a diameter of 50 meters (roughly 1,963 square meters or 0.48 acres). If an uncalibrated photogrammetry process or an uncorrected non-RTK drone introduces a small, uniform vertical shift of just **5 centimeters (0.16 feet or 1.96 inches)** across the dataset, the impact on volume is calculated as:
$$\text{Volumetric Error} = \text{Surface Area} \times \text{Vertical Elevation Shift}$$
$$\text{Volumetric Error} = 1,963 \text{ m}^2 \times 0.05 \text{ m} = 98.15 \text{ cubic meters } (\approx 128.4 \text{ cubic yards})$$
If the material being measured is crushed aggregate, iron ore, or coal with an average density of 1.5 metric tons per cubic meter, that minor 5 cm elevation error translates into a financial discrepancy of **147 metric tons** for a single stockpile. Expanded across a large quarry featuring thirty separate material piles, a minor vertical error creates hundreds of thousands of dollars in accounting discrepancies during inventory audits.
The table below demonstrates how vertical elevation errors scale across varying surface site areas, underscoring the absolute necessity of keeping vertical error margins under 2 to 5 centimeters.
| Site / Stockpile Base Area | Vertical Elevation Error ($\Delta Z$) | Calculated Volume Error ($\Delta V$) | Equivalent Material Weight (at $1.5 \text{ t/m}^3$) |
|---|---|---|---|
| 500 m² (~0.12 Acres) | 2 cm (0.02 m) | 10.0 m³ (13.1 yd³) | 15.0 Metric Tons |
| 500 m² (~0.12 Acres) | 10 cm (0.10 m) | 50.0 m³ (65.4 yd³) | 75.0 Metric Tons |
| 2,000 m² (~0.49 Acres) | 3 cm (0.03 m) | 60.0 m³ (78.5 yd³) | 90.0 Metric Tons |
| 2,000 m² (~0.49 Acres) | 15 cm (0.15 m) | 300.0 m³ (392.4 yd³) | 450.0 Metric Tons |
| 10,000 m² (~2.47 Acres) | 2 cm (0.02 m) | 200.0 m³ (261.6 yd³) | 300.0 Metric Tons |
| 10,000 m² (~2.47 Acres) | 20 cm (0.20 m) | 2,000.0 m³ (2,615.9 yd³) | 3,000.0 Metric Tons |
Step-by-Step Workflow Breakdown: Traditional Ground vs. RTK Drone Surveying
Comparing the operational efficiency of traditional ground surveying against modern RTK drone photogrammetry highlights how time savings are realized at every stage of the project lifecycle.
1. Phase 1: Pre-Flight Site Setup & Control (GCP Layout)
- Traditional Ground Surveying: The crew sets up a total station over an established local benchmark, levels the instrument, and establishes orientation back-sights. This physical setup requires 45 to 60 minutes before a single data point is recorded.
- Standard Non-RTK Drone Surveying: The crew must walk the entire perimeter and interior of the site, setting up 10 to 15 physical Ground Control Points (GCPs) painted on the ground or marked with targets, then measuring each target location using a GNSS rover. This prep phase takes 2 to 4 hours.
- RTK Drone Surveying: The pilot sets up 2 to 3 passive ground Check Points for independent quality verification. The drone establishes an active RTK connection via a local base station or an NTRIP cellular stream in under 5 minutes. Total setup time: 15 to 20 minutes.
2. Phase 2: Active Field Data Collection
- Traditional Ground Surveying: Technicians manually walk the site, holding a prism pole or GNSS rod against the toe, slope, and crest of every stockpile. Walking steep, loose gravel piles creates significant slip-and-fall hazards. Data collection rate: ~200 points per hour. Total field time for a 100-acre site: 16 to 24 hours.
- RTK Drone Surveying: The pilot launches the drone on an automated 3D grid flight path at an altitude of 200 to 300 feet AGL. The aircraft autonomously captures overlapping high-resolution photos geotagged with real-time centimeter-accurate spatial coordinates. Total flight time for 100 acres: 25 to 30 minutes.
3. Phase 3: Office Processing & Volumetric Generation
- Traditional Ground Surveying: The surveyor imports spot elevation points into CAD software and generates a Triangulated Irregular Network (TIN) surface. Because points are meters apart, the software interpolates flat planes between sparse points, underestimating complex curve volumes. Processing time: 2 to 3 hours.
- RTK Drone Surveying: The pilot uploads raw photos to photogrammetry software (e.g., Pix4D, Agisoft, DroneDeploy, or PointFuse). The software automatically aligns images, applies real-time differential corrections, and builds a high-density 3D point cloud containing millions of points (GSD < 2 cm/pixel). Calculating volumes requires selecting the pile boundary; software computes the volume above the baseline in seconds. Total processing time: 1.5 to 3 hours (mostly automated compute time).
Volumetric Surveying Method Comparison Matrix
The comparative matrix below details performance metrics, operational efficiency ratios, and safety levels across three major land surveying methods for a 100-acre commercial project site.
| Performance Metric | Traditional Ground Survey (Total Station / GNSS Rod) | Standard Non-RTK Drone (Photogrammetry + GCPs) | Enterprise RTK / PPK Drone (Modern UAV Workflow) |
|---|---|---|---|
| Total Field Time (100-Acre Site) | 16.0 to 24.0 Man-Hours | 4.0 to 6.0 Man-Hours | 1.0 to 1.5 Man-Hours |
| Total Office Processing Time | 2.0 to 4.0 Hours (Manual CAD modeling) | 3.0 to 5.0 Hours (Image marking + stitching) | 1.5 to 3.0 Hours (Fully automated compute) |
| Surface Data Point Density | Low (~300 – 1,000 discrete points) | Extremely High (Millions of 3D points) | Extremely High (Millions of 3D points) |
| Horizontal Accuracy (GSD) | 1.0 – 2.0 cm | 1.5 – 3.0 cm (Dependent on GCPs) | 1.0 – 2.0 cm |
| Vertical Elevation Accuracy | 1.5 – 2.5 cm (At discrete points) | 3.0 – 8.0 cm (Risk of edge warping) | 2.0 – 4.0 cm (Uniform across site) |
| Average Volumetric Margin of Error | 3% – 7% (Due to sparse point interpolation) | 2% – 5% (Dependent on GCP density) | 1% – 2% (Matches audit standards) |
| Field Safety Hazard Exposure | High (Technicians walk active haul sites/slopes) | Moderate (Walking site to lay GCP targets) | Extremely Low (Pilot remains in safe launch zone) |
Frequently Asked Questions (FAQ)
Q1: Why are drone volume calculations often more accurate than traditional ground surveys for complex stockpiles?
Traditional ground surveys collect sparse elevation points every few meters, forcing CAD software to draw flat geometric triangles (TIN) between points. On irregularly shaped, craggy, or concave stockpiles, sparse points miss surface dips and crest variations. An RTK drone captures millions of 3D points per pile (a point every few centimeters), generating a continuous digital twin that models every surface curve without geometric interpolation errors.
Q2: How does camera shutter type affect vertical accuracy during volumetric drone mapping?
Using a camera with an electronic rolling shutter introduces subtle spatial distortions during flight because pixels are captured row-by-row while the drone moves. This rolling effect warps the image geometry, causing vertical elevation errors in final 3D models. To maintain a vertical accuracy of 2 to 5 cm, volumetric mapping should be conducted using a camera equipped with a physical **mechanical global shutter** (which exposes every pixel simultaneously) or an active LiDAR sensor.
Q3: Do I still need Ground Control Points (GCPs) for volumetric mapping if I use an RTK drone?
An RTK drone reduces the required number of physical ground targets by 80% to 90%. You no longer need a dense grid of GCPs across the site to anchor the map. However, laying 2 to 3 independent ground Check Points is required to verify vertical accuracy independently. Check points are not used to process the model; they serve as a quality assurance check to validate that vertical accuracy meets the 2 to 5 cm standard before delivering final volume reports.
Q4: How do I choose the correct base surface when calculating stockpile volumes in photogrammetry software?
Selecting the correct base surface reference is essential for accurate volume calculations. Most photogrammetry software allows you to define the base using a “Lowest Point” boundary, a custom “Best-Fit Plane,” or an explicit “Pre-Construction Digital Terrain Model (DTM).” For stockpiles built on flat concrete pads, a simple planar base works well. For material dumped on sloped or uneven ground, you must compare the drone map against a pre-existing baseline survey layer of the bare ground taken before the material was placed.
