Product Description

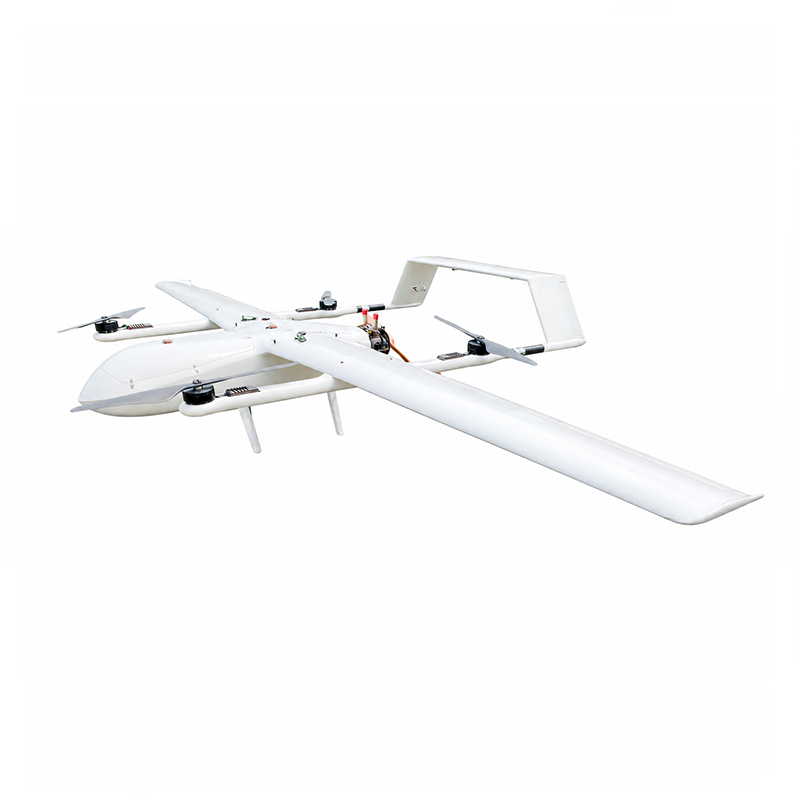

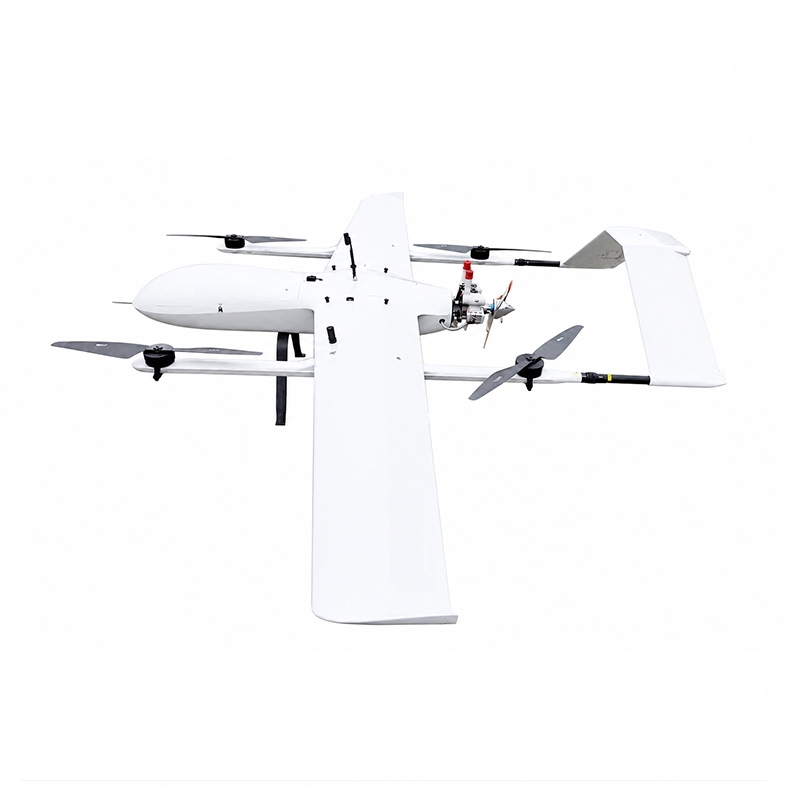

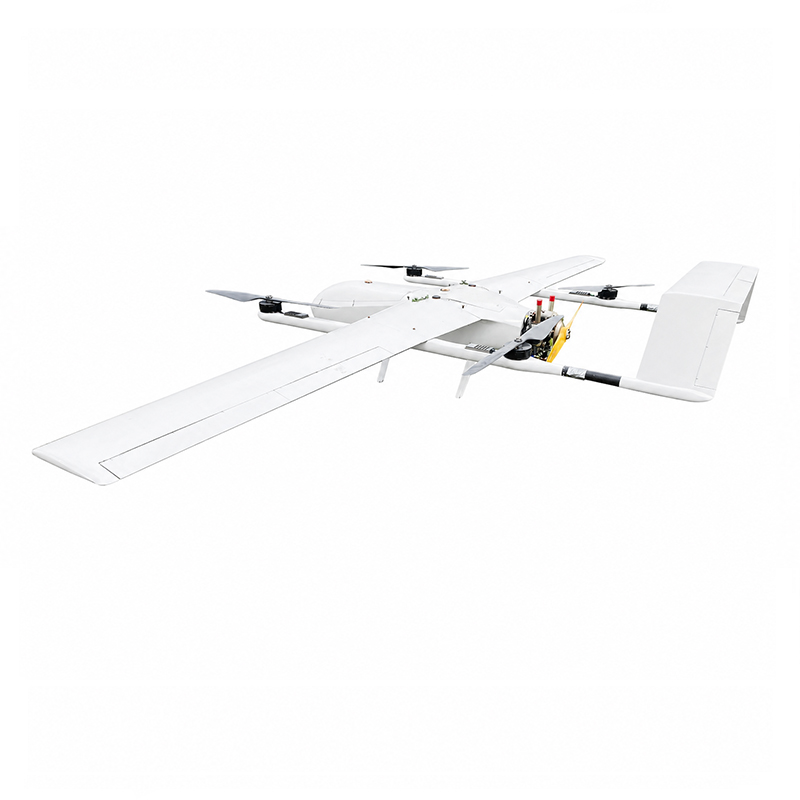

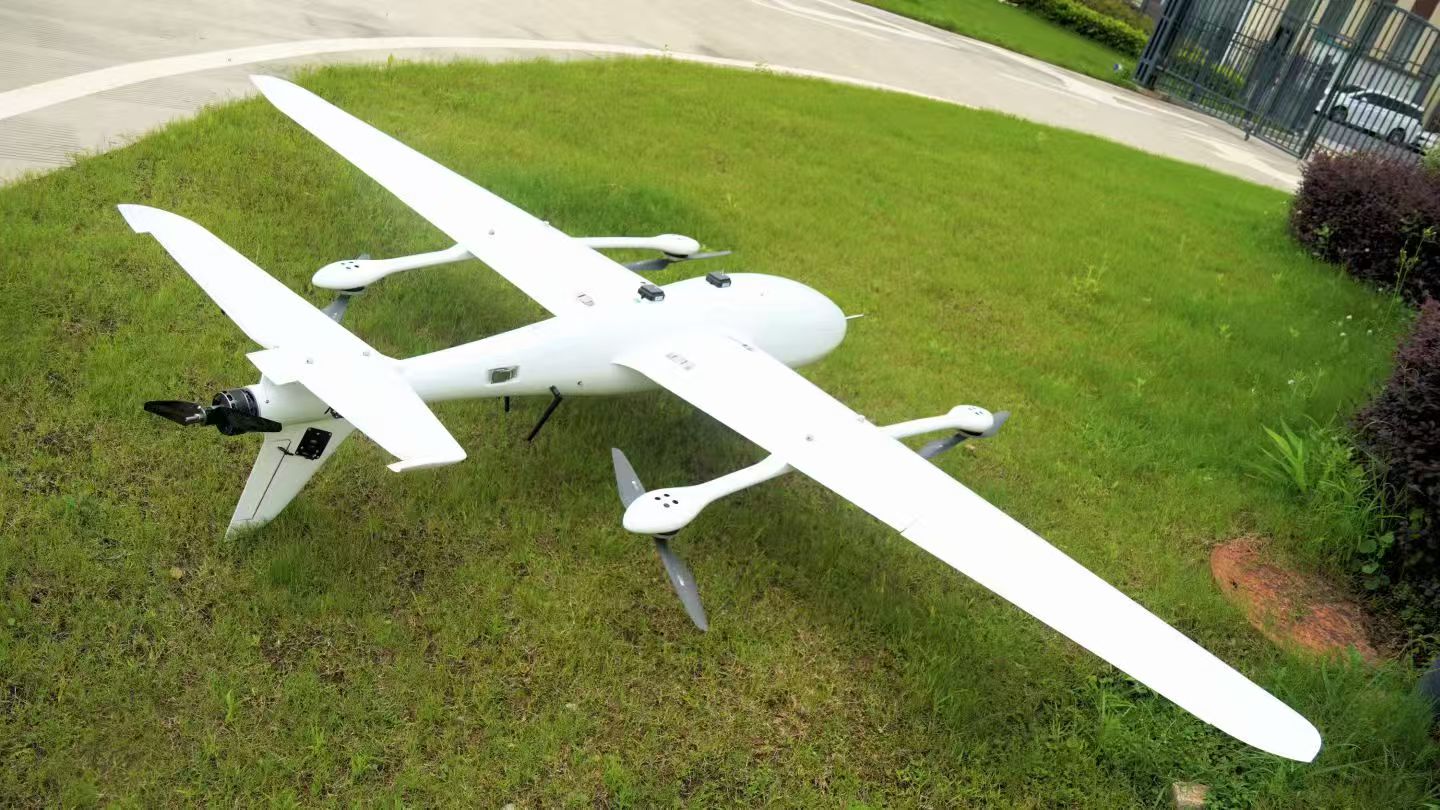

The MD-G32 is an industrial vertical take-off compound wing UAV. It has an overall dimension of 3.295m×2.005m×0.47m and a maximum take-off weight of 30 KG, with a maximum payload capacity of 5 KG. It delivers a flight endurance of 3.5 hours when carrying a 2 KG payload. With a cruising speed of 21 m/s and a maximum flight altitude of 4200 meters, this drone supports long-hour surveying and inspection missions over plateaus, mountains and other complex terrains.
This aircraft boasts excellent environmental adaptability. It withstands Level 6 winds in VTOL rotor mode and Level 7 gales in fixed-wing cruise mode. Rated IP54 ingress protection, it operates reliably under light rain and dusty field conditions. The airframe features a rapid disassembly & assembly design, and the fully disassembled unit fits into a compact transport case measuring 1800mm×680mm×480mm, which greatly simplifies field transportation and rapid on-site deployment.

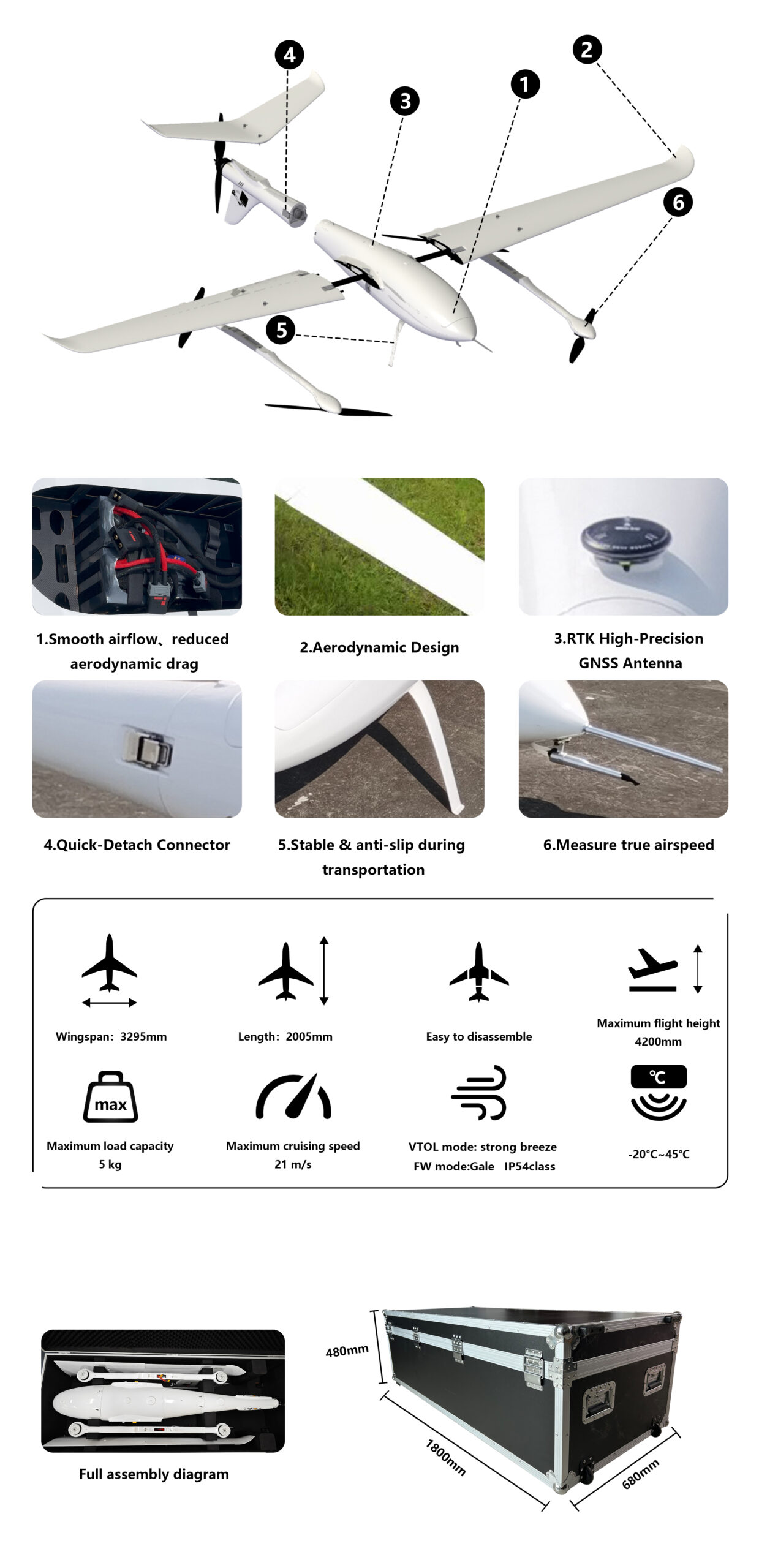

Specifications

Wingspan	3295mm
Length	2005mm
Height	470mm
Overall dimension	3295mmx2005mmx470mm
Maximum take-off weight	30kg
Max payload	5kg
Duration	3.5H@2KG
Cruising speed	21m/s
Max flight altitude	4200m
Maximum wind resistance	VTOL mode: strong breeze FW mode:Gale
Waterproof class	IP54
Transport box size	*1800mm680mm480mm*

Application Scenarios

This drone is designed for industrial scenarios requiring large-area, long-duration operations:

Surveying and Geospatial Information: positioning and mapping, geodetic surveying, and 3D modeling (using aerial surveying/oblique photography cameras).
Inspection and Security: power line/oil/natural gas/water pipeline inspection, border patrol, and forest fire patrol.
Disaster warning, on-site search and rescue emergencies, and material pipeline monitoring.
Environmental Monitoring: pollution source investigation, grassland survey, and ecological environment assessment.

Solutions

It solves key limitations of traditional UAVs:

Eliminates the runway dependency of conventional fixed-wing drones: Its vertical take-off and landing (VTOL) capability enables rapid deployment in field, mountain, and urban environments with no runway required.
Overcomes the endurance and range constraints of multirotor drones: The fixed-wing cruise mode delivers long-endurance, large-area operational performance, far outperforming multirotor models in efficiency.
Ensures stable operation in complex environments: It maintains steady flight in strong winds, high altitudes, and rugged terrain, adapting to various harsh working conditions.
Addresses pain points in industrial operations: A single flight can complete pipeline inspections spanning dozens of kilometers or mapping tasks covering tens of square kilometers, significantly reducing labor costs and safety risks.

Frequently Asked Questions

Q1:How is the warranty of your products?
We offer 6 months warranty after goods recieved.During warranty period,for non-human-induced malfunction, customers send us some videos and photos to analyze and we ship the replacement parts without additional charge.

Q2: What kind of after service can you offer?
About the technical parts we can offer all the datasheets that’s been used in the drones and will guid which battery or parts to use according to actual usage.

Q3: Can you offer pilot training?
Yes, if you don’t have polit who can fly the drone, we can offer onsite training, but the fees will be charged additional.

Q4: How long it takes to produce the products?
For the most popular models, it take about 2 weeks to get a RTF,for special customized one, will take about 1 month.

Q5: Is shipping by sea available?
Shipping by sea it’s a lot cheaper, but due to the recent regulations it can be very complicated and time consuming, we don’t recomend at the moment.By air is more prefered option.
