Product Description

10 Hours Max Flight Time

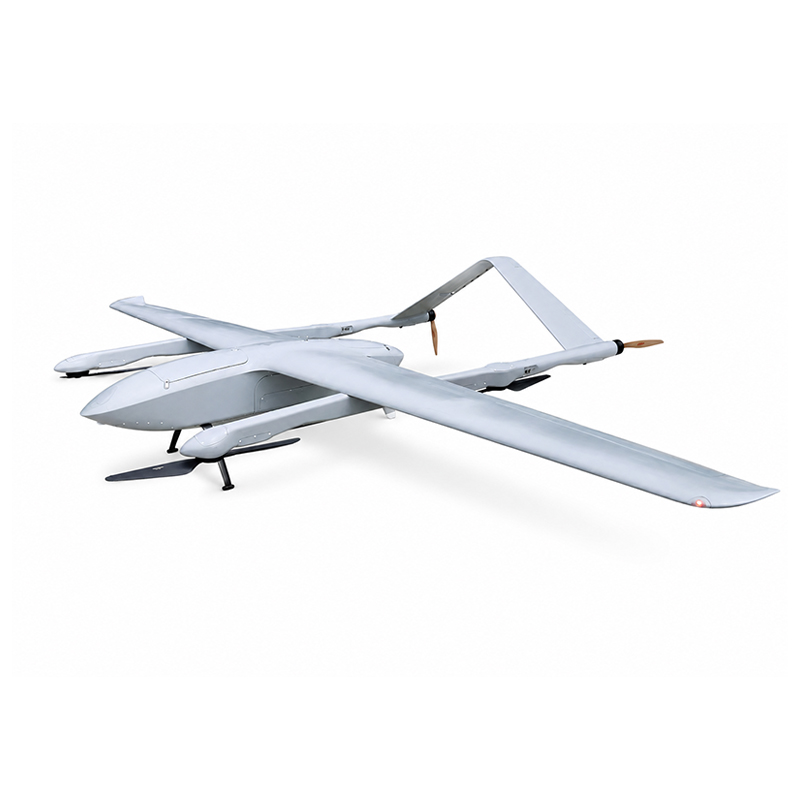

The ZH-VF50P gasoline hybrid VTOL aircraft can carry a 2 kg payload for up to 10 hours of flight time.

Max Payload 15KG

With streamlined aerodynamic structural design, a maximum takeoff weight (MTOW) of 65 kg, large wing area and compact wing layout, this hybrid VTOL UAV can carry a 15 kg payload for 4 hours of flight endurance.

Gimbal

The ZH-VF50P hybrid drone is equipped with an independent gimbal camera mounting compartment, which allows fitting heavy-duty payload adapters while searching for targets via the onboard camera.

Stable and Powerful Performance

This 116cc fuel-injected hybrid engine adopts a twin-cylinder layout, with each cylinder featuring independent fuel supply and shutdown control.
In addition, it is fitted with an automotive-style automatic starter and alternator, capable of delivering continuous and stable power output for VTOL flights.

Rainproof & Windproof

Featuring a waterproof airframe design, the ZH-VF50P gasoline-powered VTOL UAV is fully weatherproof with an IP55 ingress protection rating. Accordingly, this waterproof VTOL drone can carry out emergency missions such as search and rescue operations even in rainy conditions.

Quick Assembly

This fixed-wing UAV incorporates cutting-edge sensor technology on both the main airframe and cable connectors, greatly simplifying assembly and sensor wiring connections.

Suitable for beginners?

The ZH-VF50P hybrid VTOL UAV is operated via the LAUNCH ground control software, which is designed to be beginner-friendly. As a result, pilots with no prior flight experience can maneuver the drone proficiently.

Working around the clock

The aircraft is equipped with onboard aviation lights, making it easily identifiable in the air, especially during nighttime flights.

Built-in Flight Time Landing Assistance

Landing is smooth and safe, equipped with a ranging radar unit.

GPS

Pilots can complete compass calibration for this large VTOL UAV rapidly, which saves considerable time during emergency operations.
Furthermore, the magnetic compass is backed up/replaced by Differential Global Positioning System (DGPS) navigation. As a result, this fixed-wing VTOL aircraft is no longer susceptible to surrounding Electromagnetic Interference (EMI), greatly enhancing its aerial flight stability.

Gimbal (Optional)

Equipped with a tracking-capable onboard zoom camera, this VTOL UAV is able to follow and monitor targets (both stationary and moving) along preprogrammed regular patrol routes.
In addition, target coordinates can be transmitted and shared with the command center. Once the surveillance mission is completed, the drone will automatically resume its original patrol route.

Monitor target movement status via Ground Control Station (GCS) (Optional)

Pilots may use the LAUNCH Ground Control Station (GCS) to monitor target movement data, including real-time updated GPS coordinates, the distance between the target and the drone, as well as the distance from the target to the home position.

Follow-Me Function (Optional)

Occasionally, the drone launch and recovery platform (such as ships or vehicles) needs to relocate to fulfill missions. Under such circumstances, the UAV must be capable of tracking the moving platform and landing upon mission completion. This function is extremely valuable when the VTOL drone carries out surveillance missions over the sea.

Dimensions & Packing Dimensions

What is included?

• 1 × Sky Whale Max VTOL Fixed-Wing Airframe
  4 × Elevator Motors
  4 × Electronic Speed Controllers (ESCs) for elevator motors
  2 × 30-inch Carbon Fiber Propellers, Standard Clockwise & Counter-Clockwise Pair
  1 × 26-inch Tractor Propeller (Clockwise Rotation) for Engine
  4 × Servo Motors
  1 × CAN Port Airspeed Indicator
  1 × Flight Controller Power Module
  1 × CUAV X7+ Pro Flight Controller with Integrated GPS
  1 × Time-of-Flight (TOF) Rangefinder
  1 × Futaba T6K V3S Radio Transmitter
  1 × DLA116 EFI Engine
  1 × 18L Fuel Tank
  3 × 14S 10000mAh High-Voltage LiPo Batteries
  1 × 6S 16000mAh Lithium-ion Battery
  1 × Aircraft Assembly & Flight Testing Service
  2 × Flight Cases
  1 × LAUNCH Ground Control Station Software

Frequently Asked Questions

Q1:How is the warranty of your products?
We offer 6 months warranty after goods recieved.During warranty period,for non-human-induced malfunction, customers send us some videos and photos to analyze and we ship the replacement parts without additional charge.

Q2: What kind of after service can you offer?
About the technical parts we can offer all the datasheets that’s been used in the drones and will guid which battery or parts to use according to actual usage.

Q3: Can you offer pilot training?
Yes, if you don’t have polit who can fly the drone, we can offer onsite training, but the fees will be charged additional.

Q4: How long it takes to produce the products?
For the most popular models, it take about 2 weeks to get a RTF,for special customized one, will take about 1 month.

Q5: Is shipping by sea available?
Shipping by sea it’s a lot cheaper, but due to the recent regulations it can be very complicated and time consuming, we don’t recomend at the moment.By air is more prefered option.
