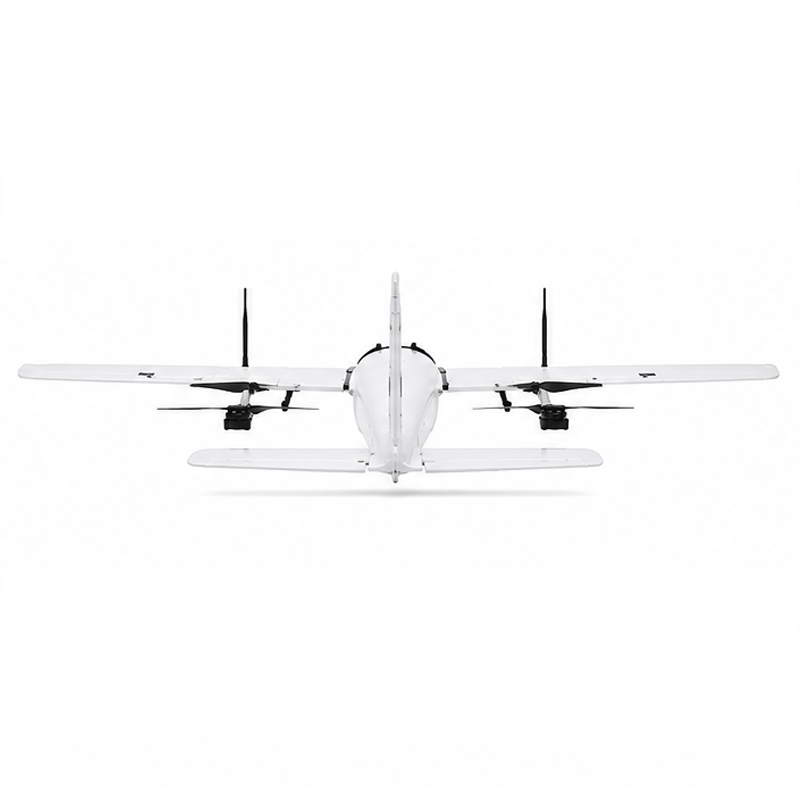

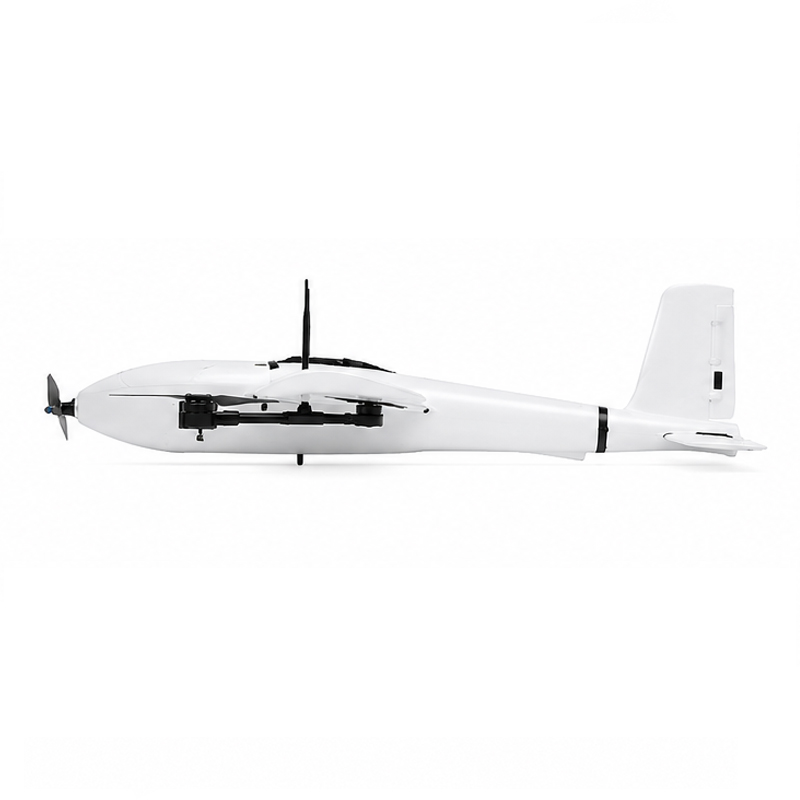

Mapird Pro Long Endurance VTOL Drone For Mapping And Surveillance

[email protected]

SKU：Mapird Pro Long Endurance VTOL Drone
Weight：71.0KG

Category: VTOL Drones

Description
Reviews (0)

Product Description

TThis drone is constructed from composite materials including EPO, EVA, carbon fiber and engineering plastics. It features a 2100mm wingspan, 744mm VTOL arm length, 1200mm fuselage length and 156mm fuselage height (excluding foot pads), with a wing area of 59 dm². The payload bay measures 180×150×110mm, and the transport case size is 1.08×0.35×0.48m. Tool-free quick disassembly and assembly is supported.
The maximum takeoff weight is less than 7.5 kg, with a maximum payload capacity of 1 kg. Its cruising speed ranges from 18 to 21 m/s, and stall speed is 10 m/s. Adopting vertical takeoff and landing design, it can operate in various complex terrains.
The maximum takeoff altitude is 3000 meters above sea level, while the practical ceiling reaches 4000 meters above sea level. It can withstand Level 5 wind during normal operation, enabling stable flight missions in high-altitude and windy outdoor environments.

Specifications

Wingspan	2100 mm
VTOL arm length	744 mm
Fuselage height	156 mm (excluding foot pads)
Fuselage length	1200 mm
Wing area	59 dm²
Cruise speed	18–21 m/s
Maximum payload	1 kg
Transport case dimension	1.08 × 0.35 × 0.48 m
Maximum takeoff weight	<7.5 kg
Maximum takeoff altitude	3000 m above sea level
Service ceiling	4000 m above sea level
Wind resistance	Level 5 (for normal operation)
Takeoff mode	Vertical takeoff and landing (VTOL)
Assembly & disassembly	Tool-free quick disassembly
Payload bay dimension	180 × 150 × 110 mm
Stall speed	10 m/s

Application Scenarios

This drone is designed for industrial scenarios requiring large-area, long-duration operations:

Surveying and Geospatial Information: positioning and mapping, geodetic surveying, and 3D modeling (using aerial surveying/oblique photography cameras).
Inspection and Security: power line/oil/natural gas/water pipeline inspection, border patrol, and forest fire patrol.
Disaster warning, on-site search and rescue emergencies, and material pipeline monitoring.
Environmental Monitoring: pollution source investigation, grassland survey, and ecological environment assessment.

Solutions

It solves key limitations of traditional UAVs:

Eliminates the runway dependency of conventional fixed-wing drones: Its vertical take-off and landing (VTOL) capability enables rapid deployment in field, mountain, and urban environments with no runway required.
Overcomes the endurance and range constraints of multirotor drones: The fixed-wing cruise mode delivers long-endurance, large-area operational performance, far outperforming multirotor models in efficiency.
Ensures stable operation in complex environments: It maintains steady flight in strong winds, high altitudes, and rugged terrain, adapting to various harsh working conditions.
Addresses pain points in industrial operations: A single flight can complete pipeline inspections spanning dozens of kilometers or mapping tasks covering tens of square kilometers, significantly reducing labor costs and safety risks.

Frequently Asked Questions

Q1:How is the warranty of your products?
We offer 6 months warranty after goods recieved.During warranty period,for non-human-induced malfunction, customers send us some videos and photos to analyze and we ship the replacement parts without additional charge.

Q2: What kind of after service can you offer?
About the technical parts we can offer all the datasheets that’s been used in the drones and will guid which battery or parts to use according to actual usage.

Q3: Can you offer pilot training?
Yes, if you don’t have polit who can fly the drone, we can offer onsite training, but the fees will be charged additional.

Q4: How long it takes to produce the products?
For the most popular models, it take about 2 weeks to get a RTF,for special customized one, will take about 1 month.

Q5: Is shipping by sea available?
Shipping by sea it’s a lot cheaper, but due to the recent regulations it can be very complicated and time consuming, we don’t recomend at the moment.By air is more prefered option.
