Striver mini VTOL Drone For Mapping And Surveillance
SKU：Striver mini VTOL
Max payload：1KG
Product Description

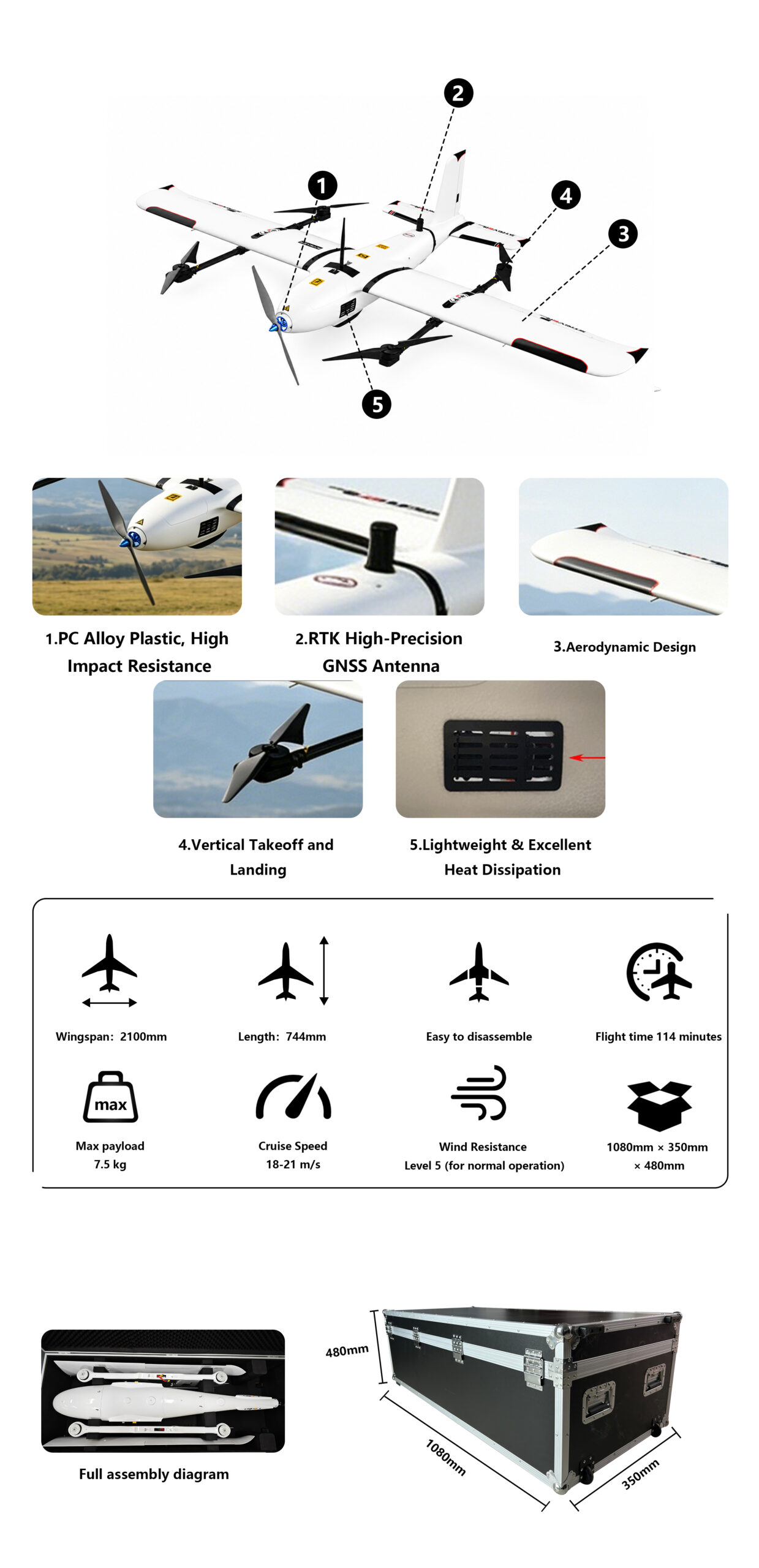

- This drone is constructed from composite materials including EPO, EVA, carbon fiber and engineering plastics. It features a 2100mm wingspan, 744mm VTOL arm length, 1200mm fuselage length and 156mm fuselage height (excluding foot pads), with a wing area of 59 dm². The payload bay measures 180×150×110mm, and the transport case size is 1.08×0.35×0.48m. Tool-free quick disassembly and assembly is supported.
- The maximum takeoff weight is less than 7.5 kg, with a maximum payload capacity of 1 kg. Its cruising speed ranges from 18 to 21 m/s, and stall speed is 10 m/s. Adopting vertical takeoff and landing design, it can operate in various complex terrains.
- The maximum takeoff altitude is 3000 meters above sea level, while the practical ceiling reaches 4000 meters above sea level. It can withstand Level 5 wind during normal operation, enabling stable flight missions in high-altitude and windy outdoor environments.
Specifications
| Wingspan | 2100 mm |
| VTOL arm length | 744 mm |
| Fuselage height | 156 mm (excluding foot pads) |
| Fuselage length | 1200 mm |
| Wing area | 59 dm² |
| Cruise speed | 18–21 m/s |
| Maximum payload | 1 kg |
| Transport case dimension | 1.08 × 0.35 × 0.48 m |
| Maximum takeoff weight | <7.5 kg |
| Maximum takeoff altitude | 3000 m above sea level |
| Service ceiling | 4000 m above sea level |
| Wind resistance | Level 5 (for normal operation) |
| Takeoff mode | Vertical takeoff and landing (VTOL) |
| Assembly & disassembly | Tool-free quick disassembly |
| Payload bay dimension | 180 × 150 × 110 mm |
| Stall speed | 10 m/s |
Application Fields
This UAV is developed to satisfy industrial work demands that demand wide coverage and prolonged flight hours:
- Geospatial Survey & Mapping: Coordinate positioning, topographic measurement and 3D model reconstruction, compatible with aerial mapping and oblique photography camera payloads.
- Inspection & Security Missions: Routine checks on power transmission lines, oil, gas and water pipelines, border surveillance and wildfire monitoring.
- Emergency Management: Early disaster alert, on-site emergency search & rescue, and continuous monitoring of various pipeline infrastructures.
- Ecological Monitoring: Pollution source tracing, grassland resource surveys and comprehensive ecological evaluation.
Core Advantages
It overcomes the major drawbacks of conventional unmanned aerial vehicles:
- No need for dedicated runways unlike standard fixed-wing drones
Equipped with VTOL technology, it can be rapidly put into operation in wilderness, mountainous regions and urban areas without any runway facilities.
- Breaks through the endurance and coverage limits of multi-rotor UAVs
Its fixed-wing cruising structure delivers extended flight time and broad working range, achieving much higher operational efficiency than multi-rotor counterparts.
- Reliable flight performance in tough environments
It keeps stable flight against strong winds, at high elevations and over rough terrain, fitting all kinds of severe field working conditions.
- Reduces practical difficulties in industrial operations
One single flight can inspect dozens of kilometers of pipelines or map dozens of square kilometers of land, effectively cutting labor expenses and lowering on-site safety hazards.
Common Questions
Q1: What warranty coverage do you provide for your products?
All products come with a 6-month warranty starting from the date customers receive the goods. Within the warranty period, if faults occur due to non-human damage, you may submit photos and videos of defective parts for our technical review, and we will send replacement components free of charge.
All products come with a 6-month warranty starting from the date customers receive the goods. Within the warranty period, if faults occur due to non-human damage, you may submit photos and videos of defective parts for our technical review, and we will send replacement components free of charge.
Q2: What technical after-sales support can you provide?
We can supply complete specification documents for every component installed on the drone. Our technical team will also give customized suggestions on matching batteries and spare parts based on your real working scenarios.
We can supply complete specification documents for every component installed on the drone. Our technical team will also give customized suggestions on matching batteries and spare parts based on your real working scenarios.
Q3: Do you provide drone operator training services?
We provide on-site practical training if your team has no qualified drone pilots. However, separate training fees will be charged.
We provide on-site practical training if your team has no qualified drone pilots. However, separate training fees will be charged.
Q4: What is the production cycle for orders?
Our mainstream ready-to-fly standard models take roughly two weeks to finish production. For fully customized drone systems, the manufacturing cycle will last around one month
Our mainstream ready-to-fly standard models take roughly two weeks to finish production. For fully customized drone systems, the manufacturing cycle will last around one month
