ZH-VF40P Hybrid VTOL Drone for Inspection and Surveillance

Product Description

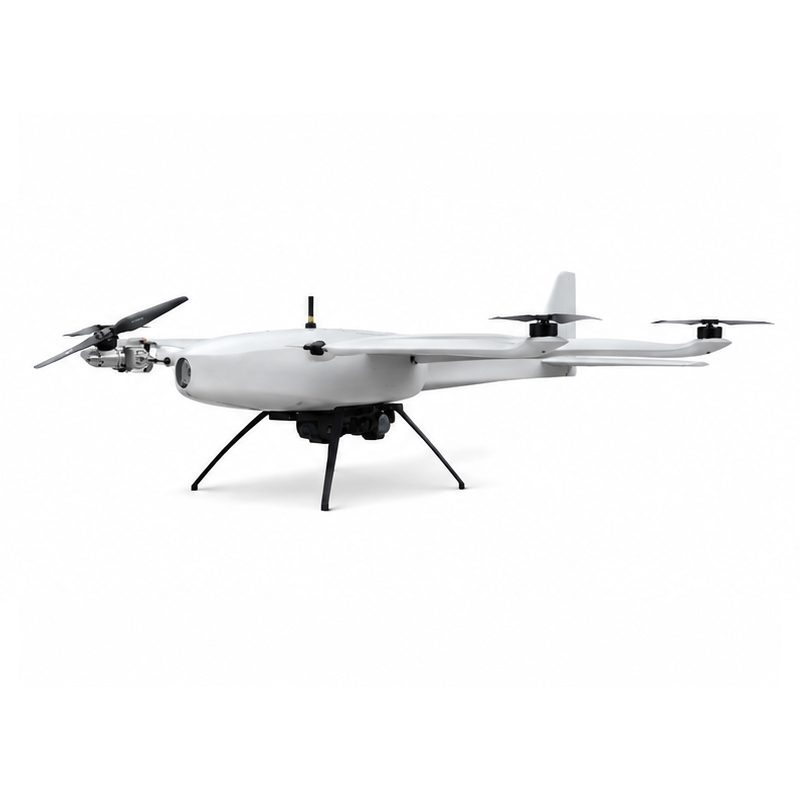

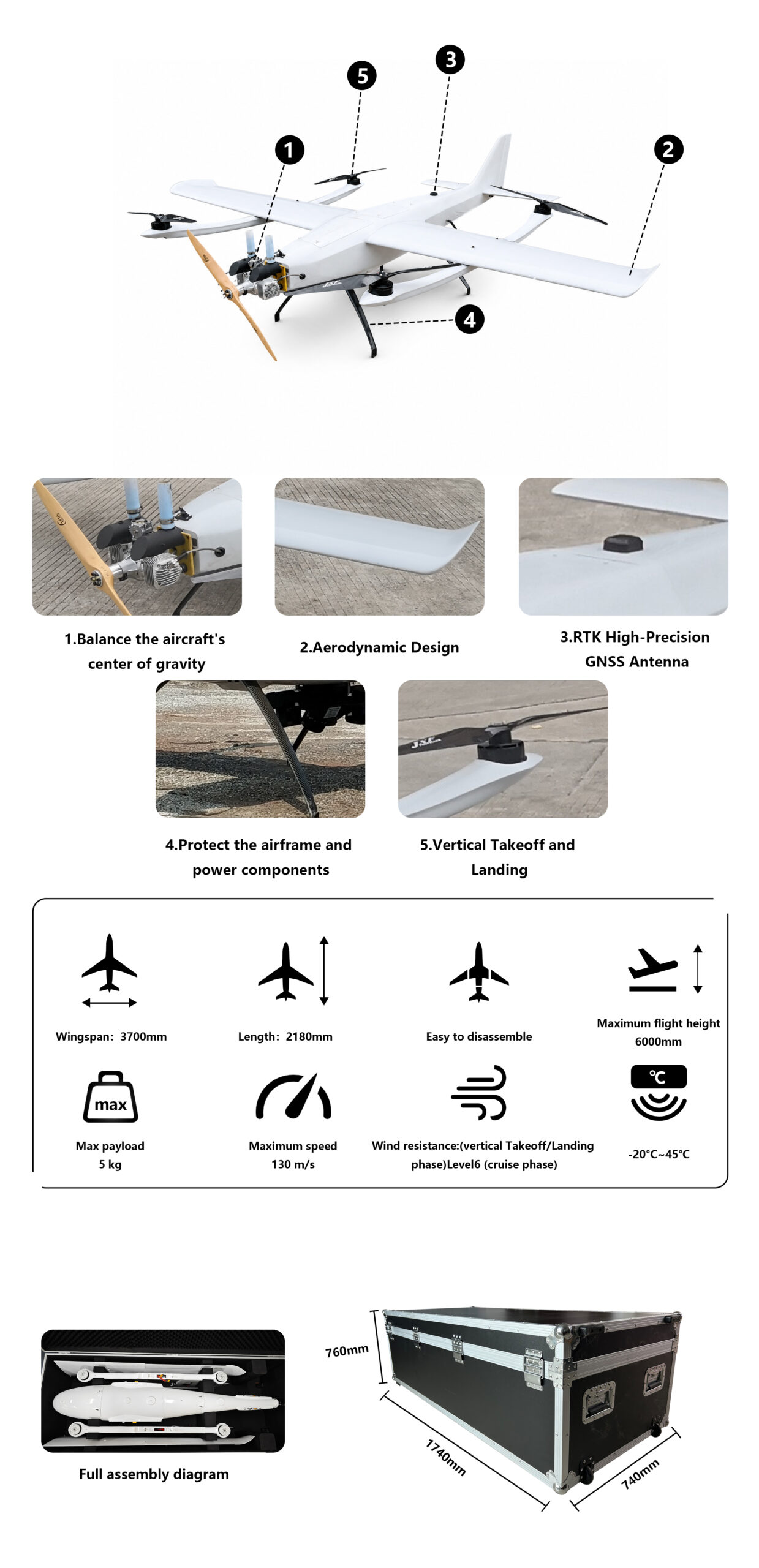

• The VF40P is a lightweight gas-powered hybrid vertical take-off and landing drone with compact body dimensions: a wingspan of 3700mm, fuselage length of 2180mm and fuselage height of 690mm. Equipped with a 14L fuel tank, it features a maximum take-off weight of 40kg and a maximum payload of 5kg.
• This drone boasts exceptional long-endurance capability, delivering a 12-hour flight duration with a 2kg payload, drastically cutting the number of takeoff and landing cycles during field operations. Optimized for low-to-medium speed precision tasks, it has a cruising speed range of 100–120km/h and a maximum flight speed of 130km/h. In rotor mode, its climb rate is ≤3.5m/s and descent rate ≤1.5m/s, while the service ceiling reaches 6000 meters, enabling reliable operations in high-altitude mountainous and plateau regions.
• Rated IP54 for ingress protection, the drone is dustproof and splash-resistant, capable of stable operation within a wide temperature range of -10℃ to 45℃. Its wind resistance is segmented by flight phase: it withstands Level 5 winds during vertical takeoff and landing, and Level 6 winds in fixed-wing cruise mode, maintaining steady flight paths and high survey accuracy even in windy outdoor environments.
• The full aircraft fits into a single transport case with dimensions of 1740*740*760mm. It’s simple assembly and disassembly for individual or small field teams. It is widely used for low-altitude mapping, power line inspection, forestry surveys, river patrols and other small-scale industrial aerial missions.

Specifications

Application Scenarios

This drone is designed for industrial scenarios requiring large-area, long-duration operations:

• Surveying and Geospatial Information: positioning and mapping, geodetic surveying, and 3D modeling (using aerial surveying/oblique photography cameras).

• Inspection and Security: power line/oil/natural gas/water pipeline inspection, border patrol, and forest fire patrol.

• Disaster warning, on-site search and rescue emergencies, and material pipeline monitoring.

• Environmental Monitoring: pollution source investigation, grassland survey, and ecological environment assessment.

Solutions

Frequently Asked Questions

Q1:How is the warranty of your products?
We offer 6 months warranty after goods recieved.During warranty period,for non-human-induced malfunction, customers send us some videos and photos to analyze and we ship the replacement parts without additional charge.

Q2: What kind of after service can you offer?
About the technical parts we can offer all the datasheets that’s been used in the drones and will guid which battery or parts to use according to actual usage.

Q3: Can you offer pilot training?
Yes, if you don’t have polit who can fly the drone, we can offer onsite training, but the fees will be charged additional.

Q4: How long it takes to produce the products?
For the most popular models, it take about 2 weeks to get a RTF,for special customized one, will take about 1 month.
