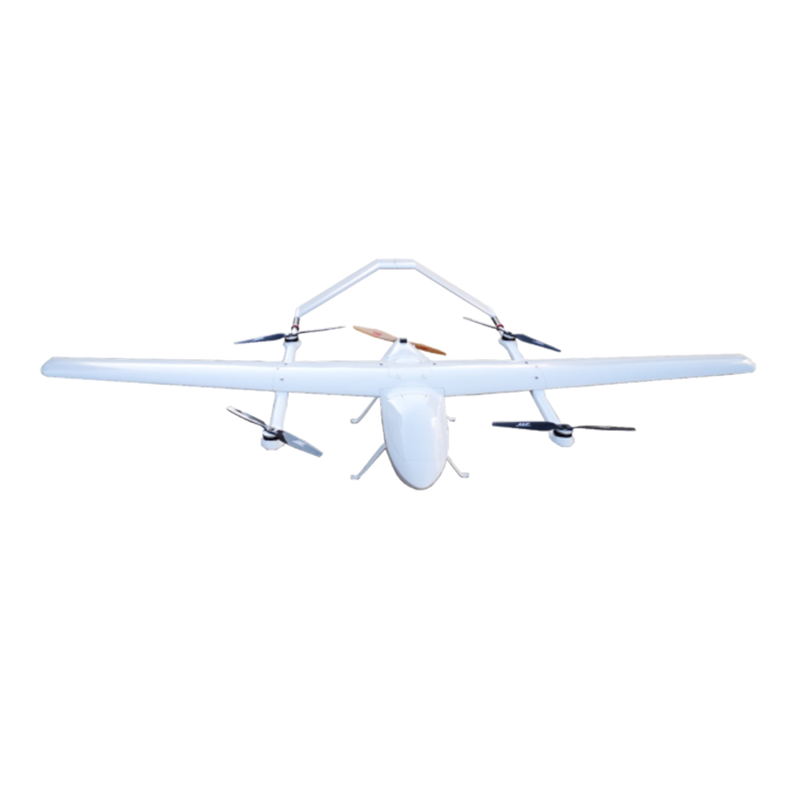

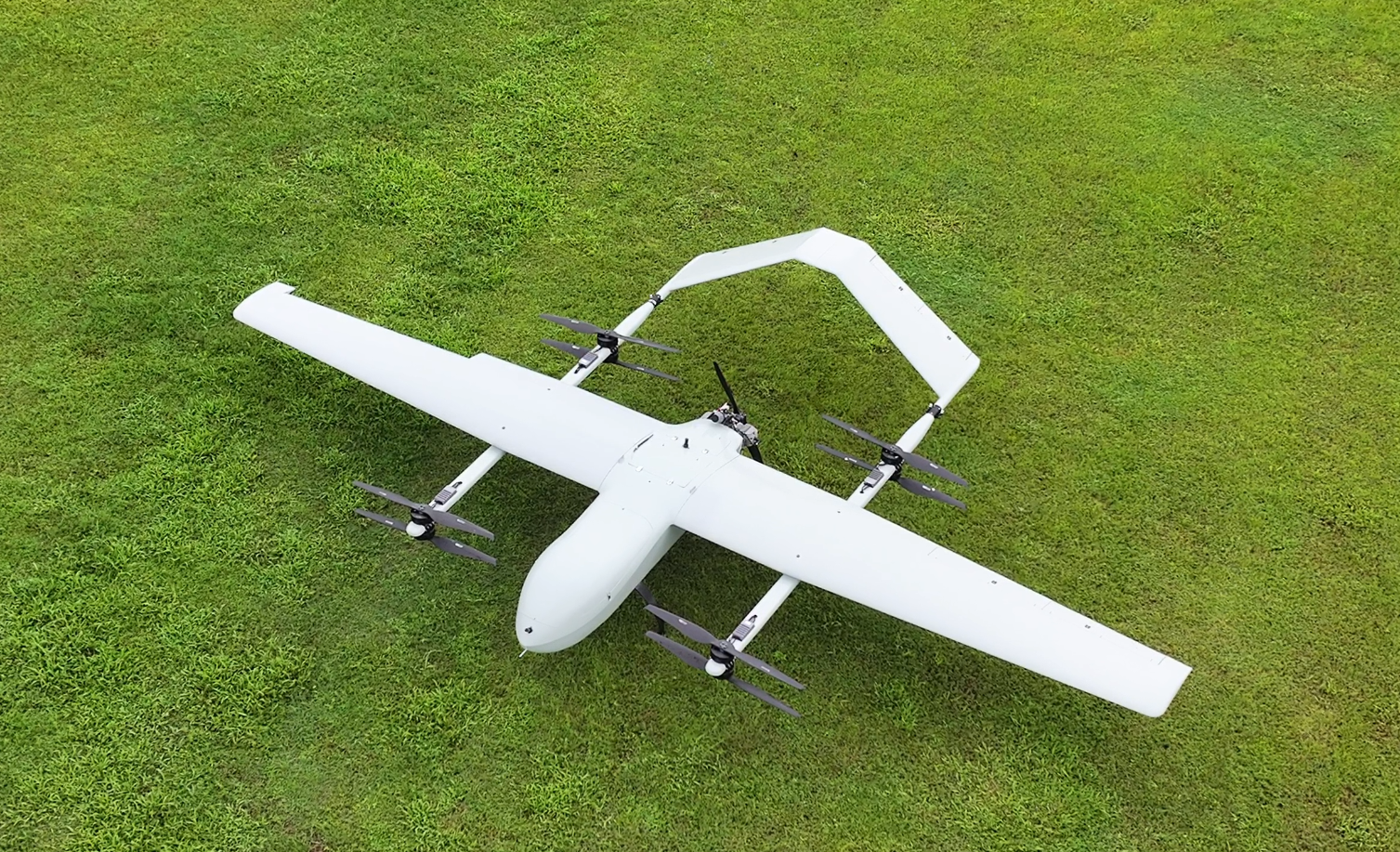

VF-200P Fuel-powered Hybrid VTOL UAV

Product Description

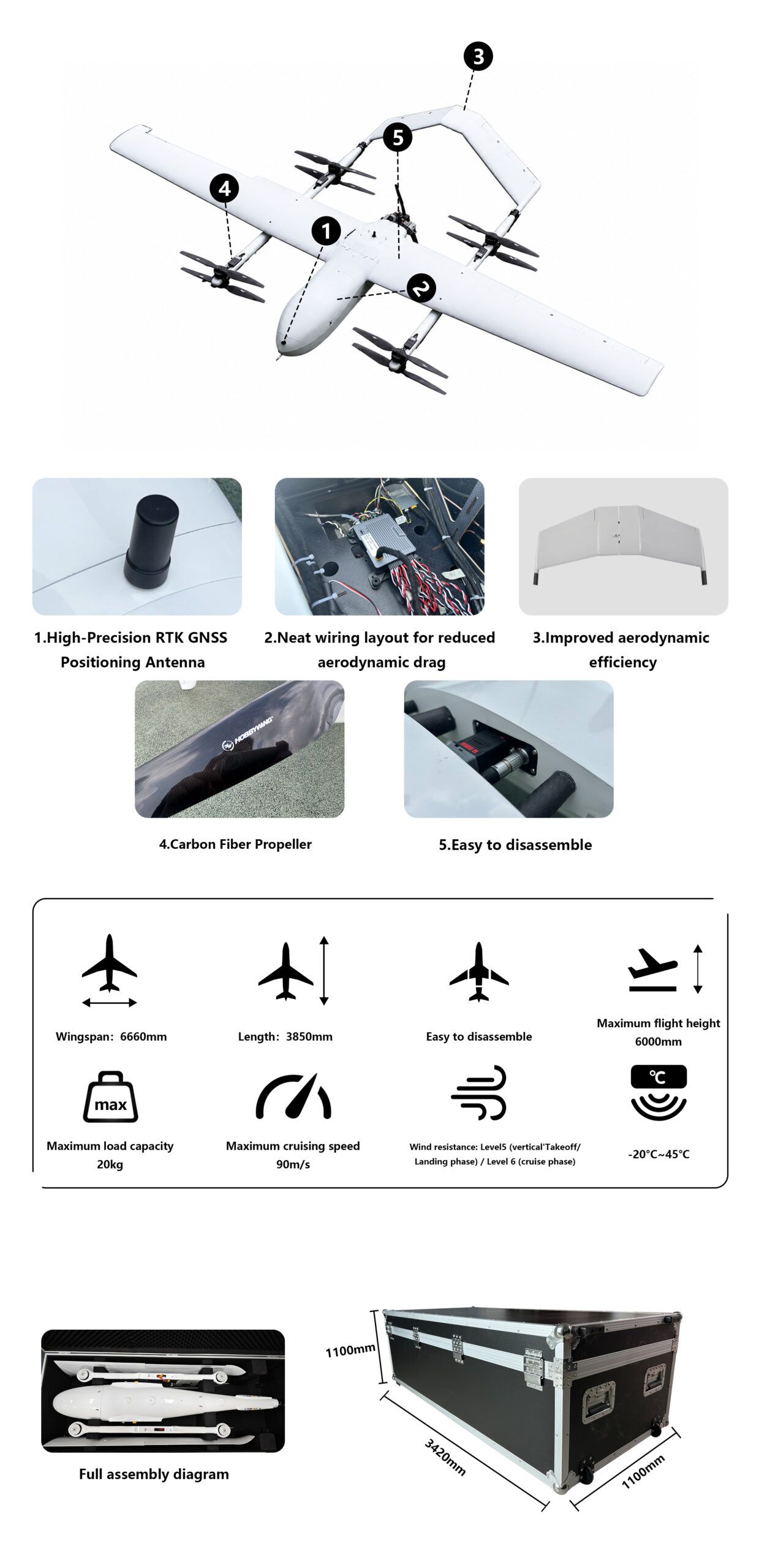

• The VF200E fuel-powered hybrid VTOL UAV boasts a large airframe, with a wingspan of 6,660 mm, fuselage length of 3,850 mm and fuselage height of 1,262 mm. It is equipped with a large 60 L fuel tank, and its folded transport dimensions measure 3420 × 1100 × 1100 mm.
• This UAV has a maximum takeoff weight of 200 kg and a maximum payload of 70 kg. It can achieve an endurance of 240 minutes with a 50 kg payload, and its practical service ceiling reaches 6,000 meters.
• It delivers powerful flight performance: a maximum flight speed of 150 km/h, a cruising speed range of 90–130 km/h, a climb rate ≤ 3.5 m/s and a descent rate ≤ 1.5 m/s.
• The aircraft features excellent environmental adaptability with an IP54 ingress protection rating. It operates stably between -10°C and +45°C, capable of resisting Level 5 winds during vertical takeoff/landing and Level 6 winds in cruising phase.


  Specifications

  Wingspan	6660mm
  Length	3850mm
  Height	1262mm
  Fuel Tank	60L
  MTOW	200kg
  Max payload	70kg
  Practical	6000m
  Endurance	240min@50kg
  Maximum speed	150km/h
  Cruising speed	90-130km/h
  Rale of  climb	≤3.5m/s
  Rate of Descent	≤1.5m/s
  Ingress proleclion Rating	IP54
  Wind resistance	Level5 (vertical Takeoff/Landing phase) / Level 6 (oruise phase)
  Opcrating tempcrature	-10°C一+45°C
  Folded/Disassembled Dimensions	3420mm*1100mm*1100mm

  Application Scenarios

  This drone is designed for industrial scenarios requiring large-area, long-duration operations:

  • Surveying and Geospatial Information: positioning and mapping, geodetic surveying, and 3D modeling (using aerial surveying/oblique photography cameras).

  • Inspection and Security: power line/oil/natural gas/water pipeline inspection, border patrol, and forest fire patrol.

  • Disaster warning, on-site search and rescue emergencies, and material pipeline monitoring.

  • Environmental Monitoring: pollution source investigation, grassland survey, and ecological environment assessment.

  Solutions

  It solves key limitations of traditional UAVs:

  • Eliminates the runway dependency of conventional fixed-wing drones: Its vertical take-off and landing (VTOL) capability enables rapid deployment in field, mountain, and urban environments with no runway required.
  • Overcomes the endurance and range constraints of multirotor drones: The fixed-wing cruise mode delivers long-endurance, large-area operational performance, far outperforming multirotor models in efficiency.
  • Ensures stable operation in complex environments: It maintains steady flight in strong winds, high altitudes, and rugged terrain, adapting to various harsh working conditions.
  • Addresses pain points in industrial operations: A single flight can complete pipeline inspections spanning dozens of kilometers or mapping tasks covering tens of square kilometers, significantly reducing labor costs and safety risks.

  Frequently Asked Questions

  Q1:How is the warranty of your products?
  We offer 6 months warranty after goods recieved.During warranty period,for non-human-induced malfunction, customers send us some videos and photos to analyze and we ship the replacement parts without additional charge.

  Q2: What kind of after service can you offer?
  About the technical parts we can offer all the datasheets that’s been used in the drones and will guid which battery or parts to use according to actual usage.

  Q3: Can you offer pilot training?
  Yes, if you don’t have polit who can fly the drone, we can offer onsite training, but the fees will be charged additional.

  Q4: How long it takes to produce the products?
  For the most popular models, it take about 2 weeks to get a RTF,for special customized one, will take about 1 month.

  Q5: Is shipping by sea available?
  Shipping by sea it’s a lot cheaper, but due to the recent regulations it can be very complicated and time consuming, we don’t recomend at the moment.By air is more prefered option.
