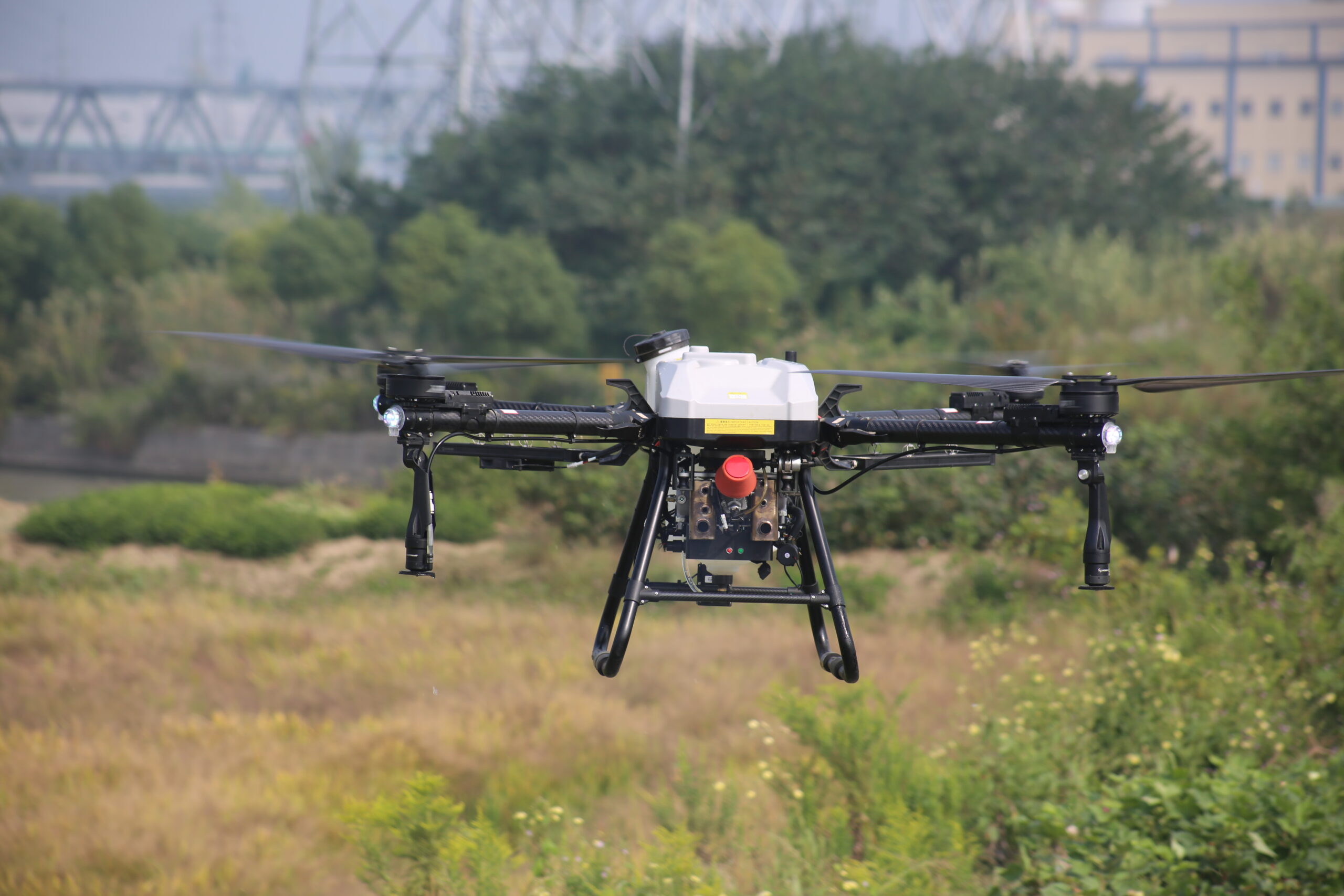

X-PC1W Agricultural Drone

Product Description

Flight Parameters

structural form: x4

protection class: Core module IP67

Overall mass -without fuel: 41.5kg

Maximum take-off weight – spraying: 64kg

Maximum wheelbase mm:1950

Maximum flight speed: 10m/s

Maximum wind speed: 6 m/s

Working environment temperature: 0~50 ℃ (plant protection)

Fuel tank rated volume: 3L

Cyclic operating range: ≥30min(64kg take-off weight)



Spraying external dimensions (mm*mm*mm)

Boom deployed, paddles deployed：2610x2610x800

Boom deployed, blades folded：1520x1520x800

Folding arms, folding paddles：850 x750 x850



GNSS

GNSS function：Single point GNSS as standard,RTK+ dual antenna directional as an option

RTK positioning: Horizontal ±10 cm, Vertical±10 cm

Single point GNSS positioning：Horizontal±100 cm,Vertical ±50 cm



Powertrain- Electro-Mechanical ESC

Stator size: 111 x 22 mm

Motor KVvalue: 60 rpm/V

Motor power:2000W

Powertrain- Propeller

material: carbon fibre

Paddle size/inch: 48

Pitch/inch: 17.5

Main rotor diameter: 1224

Number of rotors: 4



batteries

Capacity/Ah: 10Ah

Voltage/V: 51.8(14S)



Powertrain- Range Extender

Range Extender Models: GX-7

rated voltage:58V

Rated output power (0 altitude):≥6.5kW

Average fuel consumption: 5.7L/h

Adaptation height: ≤2000m

activation method: all-embracing

petrol grade: 92# and above petrol or ethanol petrol (ethanol content) (≤25 per cent)

engine-fuel ratio: 1:40



Spraying systems -workboxes

Material: Plastic (HDPE)

Workbox volume: 20L

operating load: 20kg

operating load: 20kg



Sprinkler systems -pumps

Liquid pump type: Diaphragm pumps

Number of liquid pumps: 1

Pump opening flow rate: 0-8L/min

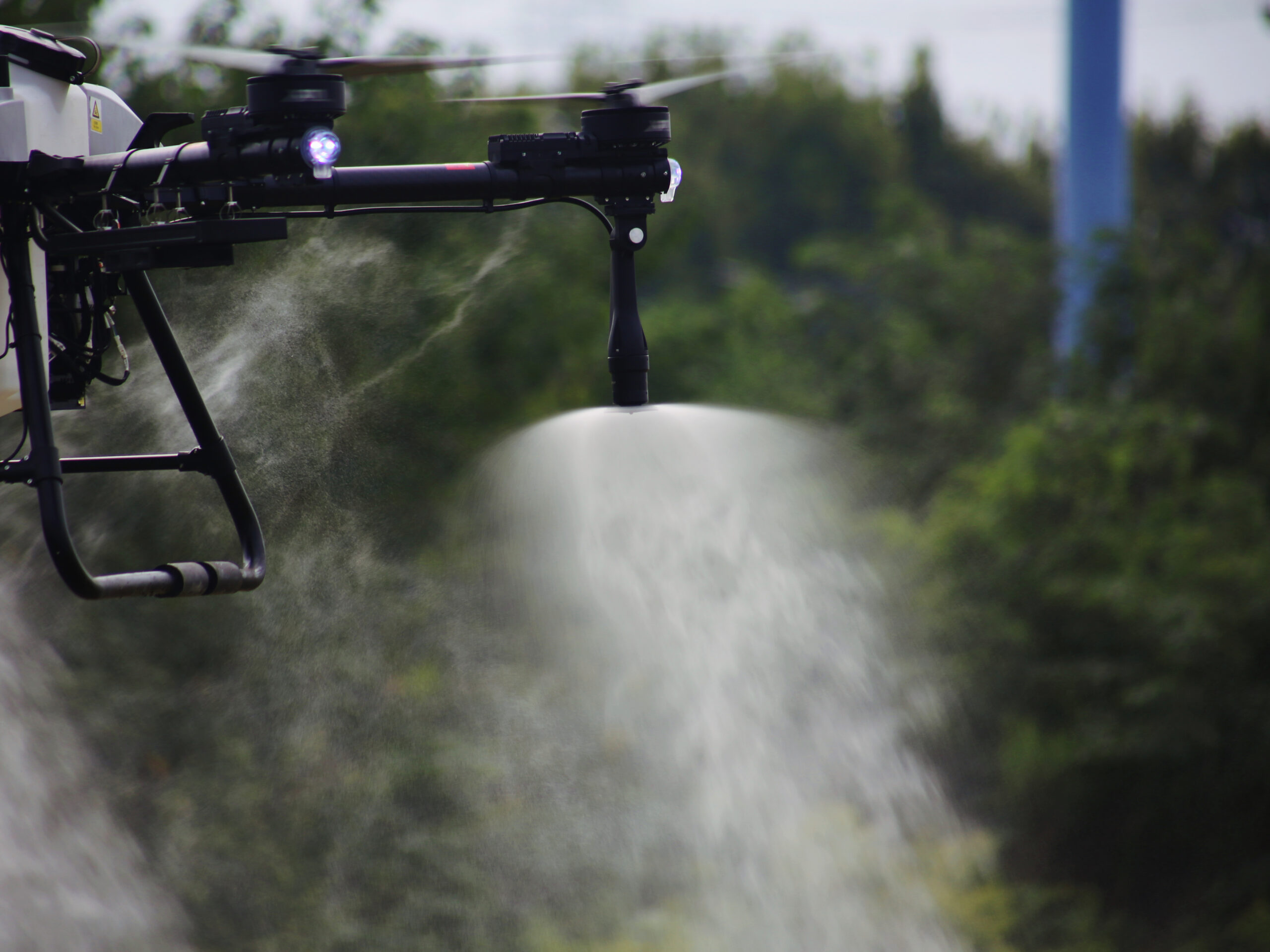

Nozzle Model:Centrifugal nozzles as standard,pressure nozzles as an option

Number of nozzles: 2

Atomised particle size: 50-400 μm

Flow monitoring: Flow meters + level meters +load cells

Effective spray range: 4-7 m (3 m relative to operating height)

radar system

Height measurement range: 1-50 m

elevation range

0.5-30 m

Obstacle Avoidance Sensible Distance: ≥30 m

safety distance: ≥2.5 m

Barrier Avoidance Direction: Forward facing obstacle avoidance as standard, rear facing obstacle avoidance as an option



FPV camera

resolution (of a photo) : 720P@30fps

FOV: 120

LED fill light power: 6W



Remote control and earth station

Earth station screen resolution: 1920*1080 1000nit

battery capacity: 10000mAh

Endurance: ≥4h

operating frequency: 2.400 GHz to 2.483 GHz

RF power: 20DB@CE/23DB@FCC

communication distance: ≥1km /2.5 metres in an unobtrusive, unobstructed



Environment

Working environment temperature: 0~50℃
