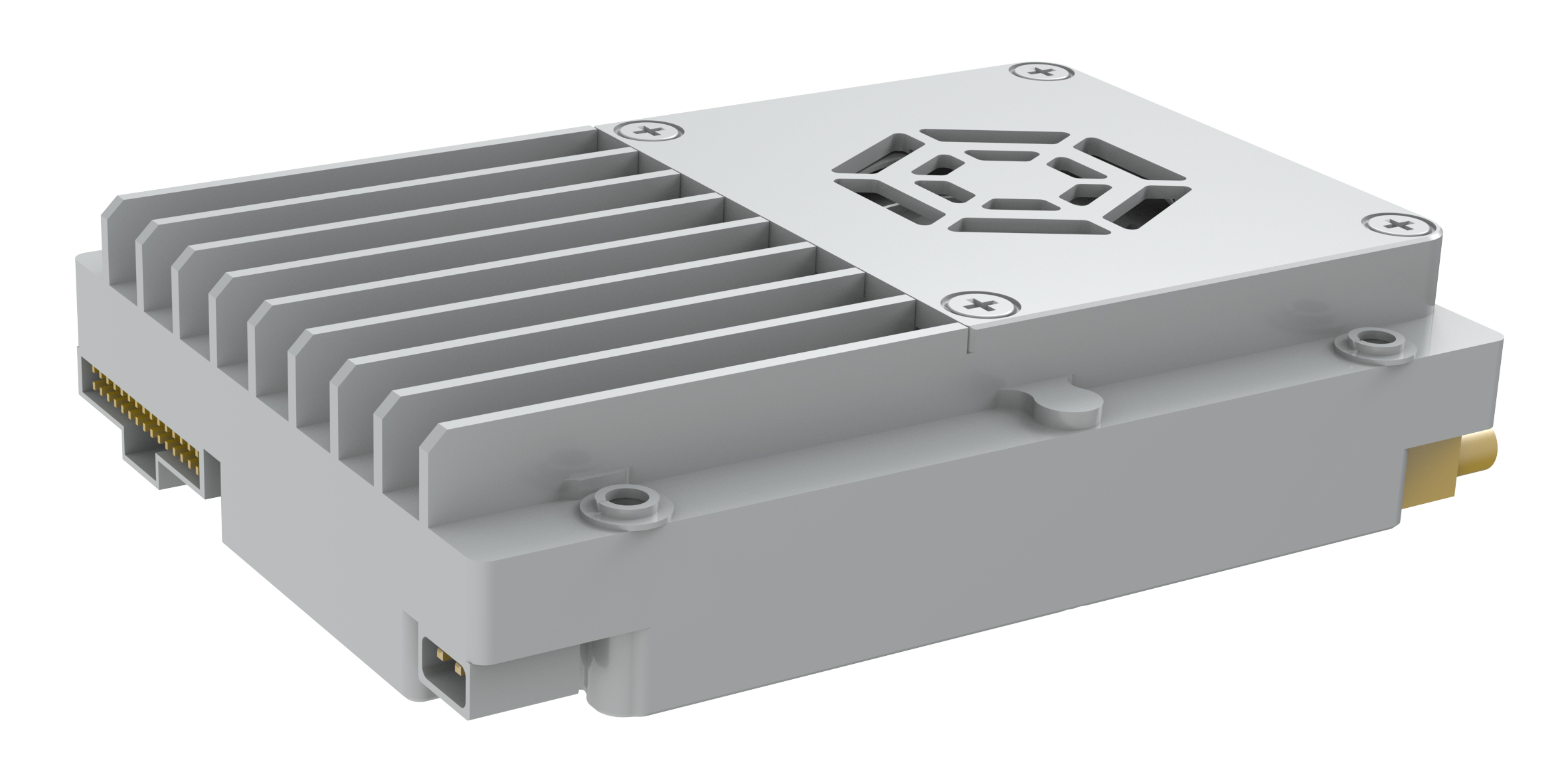

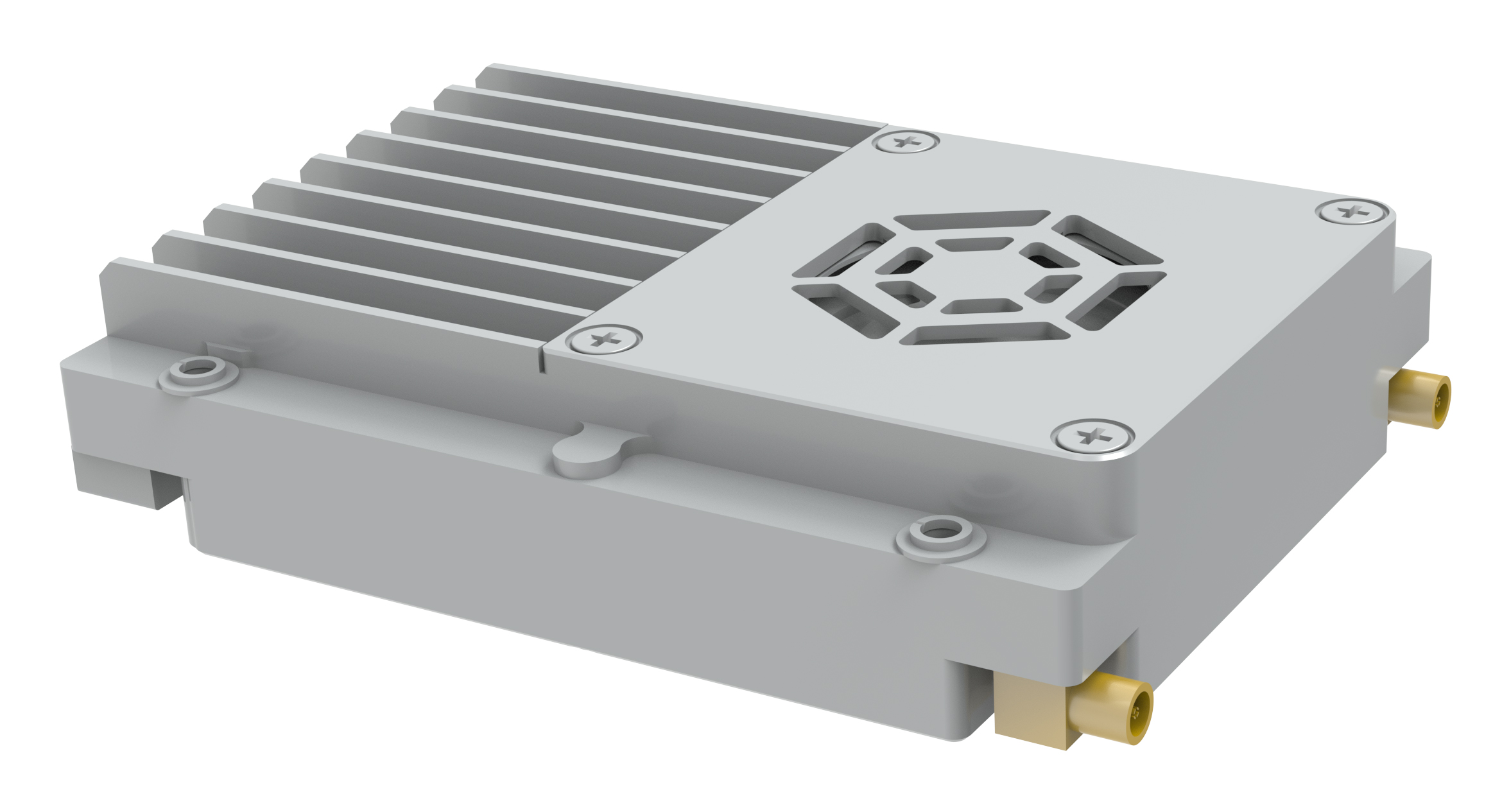

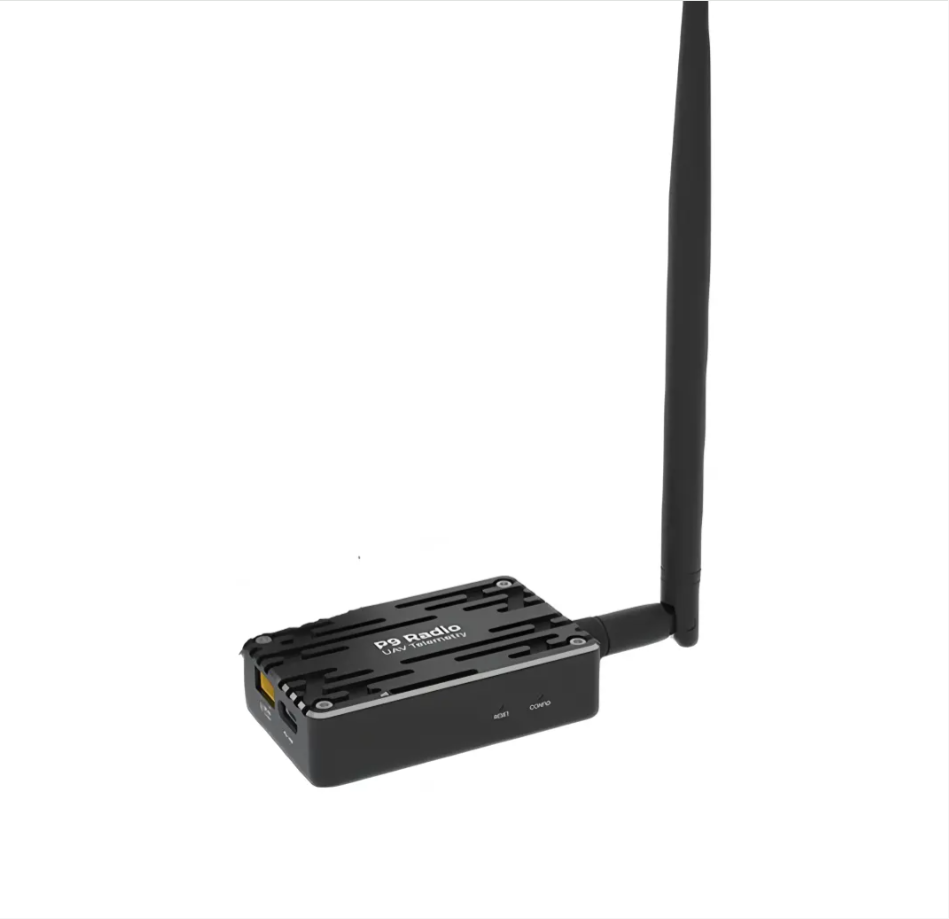

Product Description

Frequency range	L band, S band, L+S band
Networking scale	32 nodes
RF bandwidth	5/10/20/30MHz optional
Networking mode	TDMA adaptive
Broadband service	Image rate 2 channels @2Mbps/channel, the whole network sharing ≥30Mbps
Carrier modulation	TDD OFDM
Multi-hop transmission	>9 hops
Operating voltage	DC+4.5V~+17V, typical value +5V
Networking time	≤1s
RF channel	2Tx 2Rx
Route update	≤1s
Transmit power	2*0.2W
Product power consumption	≤10W
Air-to-ground distance	≥10km
Ranging capability	Support inter-machine ranging
Encryption standard	AES 128bit; physical layer encryption
Operating temperature	-40℃~+55℃ (customizable)
Product size	65mm48mm10mm
Complete weight	≤45g
Communication interface	Support 1 100M Ethernet port, 1 RS232 interface, 1 RS422 interface, 1 TTL interface
