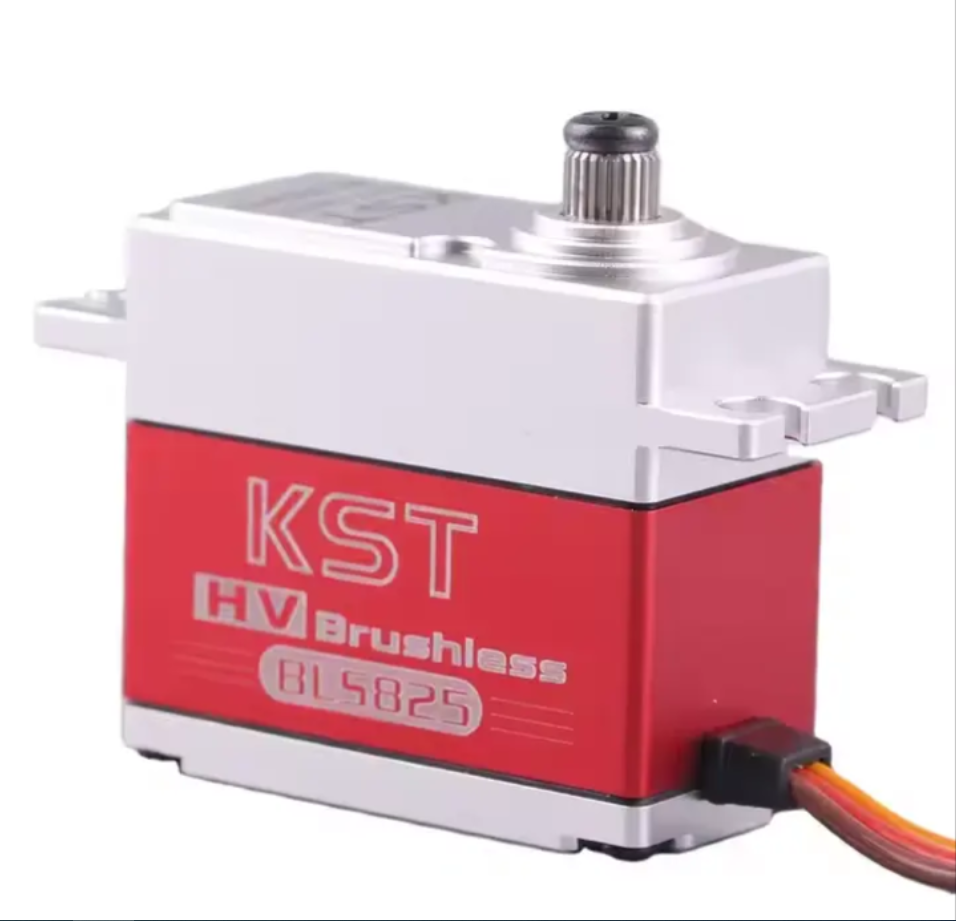

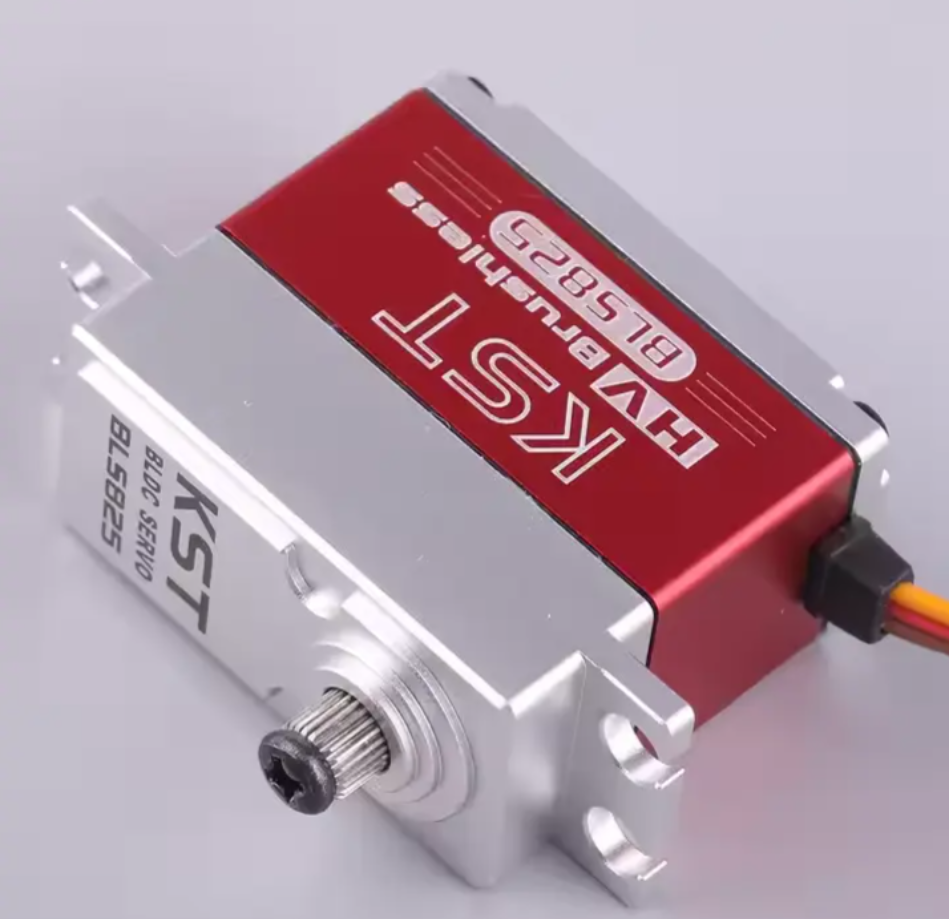

KST BLS825 0.11sec 35kg HV Brushless Digital Standard Servo Motor for Helicopter Airplane RC Car Robot Arm

Product Description

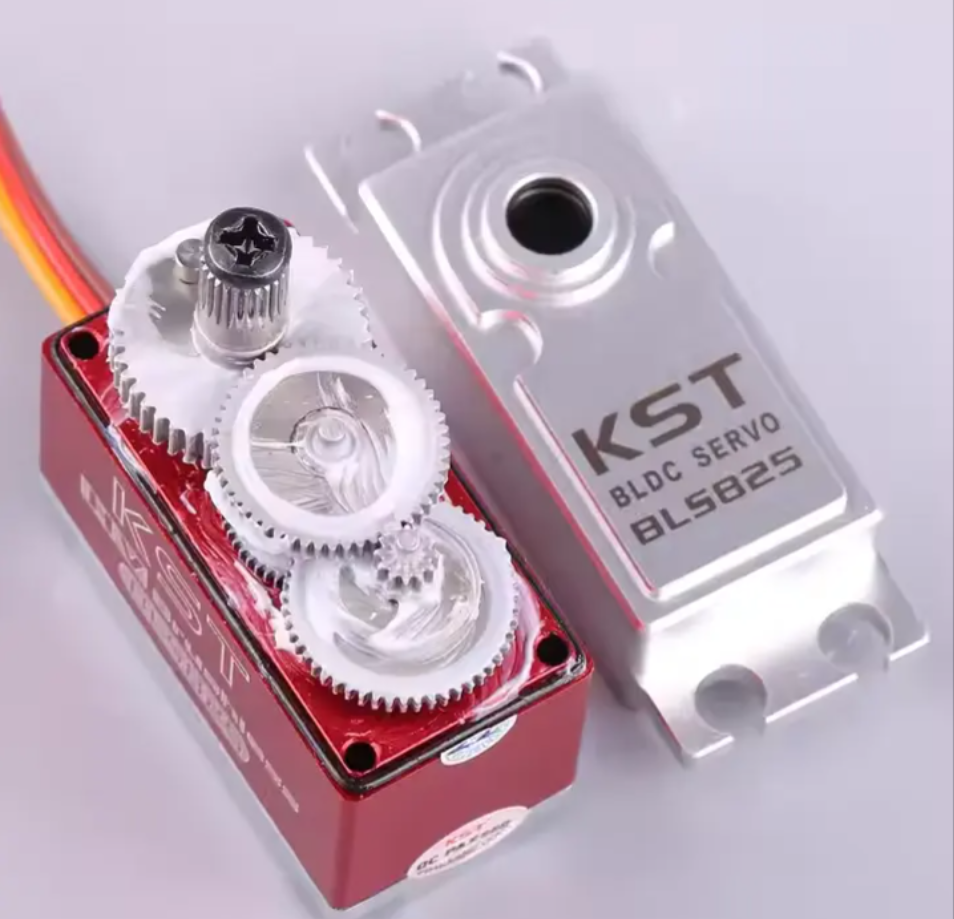

KST all metal high-speed digital servo! Not only does the gear use a precision metal gear set with high compatibility, but the
shell also uses a CNC processed all aluminum alloy shell!

Adopting a 12mm hollow cup motor, it has higher response speed and greater torque! KST 825MG high torque servo, with a rotation
degree of about 90 degrees, and a minimum operating voltage of 6V.

Description:
* Model:KSTBLS825
* Operating Voltage: DC6.0V-8.4V
* Size:40.50*20*37mm * Torque: 35Kg.cm @8.4V; 30Kg.cm @7.4V 25Kg.cm @6.0V
* Speed: 0.11sec/60° @8.4V; 0.13sec/60° @7.4V 0.15sec/60° @6.0V
* Weight: 78g
* Working Frequence: 1520us/333Hz 900us-2100us
* Motor: Brushless
* Ball Bearing: 2BB

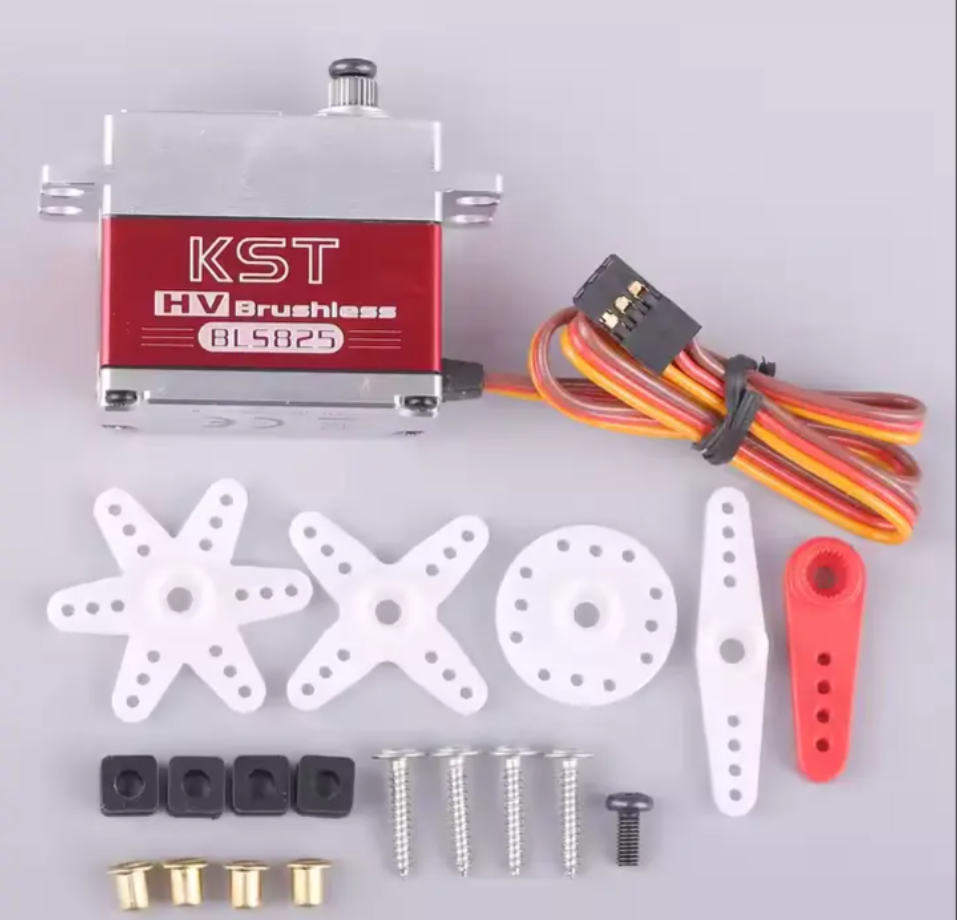

Packing list
KST BLS825 Metal Servo * 1
Half angle rudder angle * 1
Straight rudder arm * 1
Cross rudder angle * 1
Hexagonal rudder arm * 1
Disc rudder arm * 1
Servo self tapping screw * 4
Nylon shock absorber sleeve * 4
Copper sleeve * 4
Rudder arm fixing screw * 1
