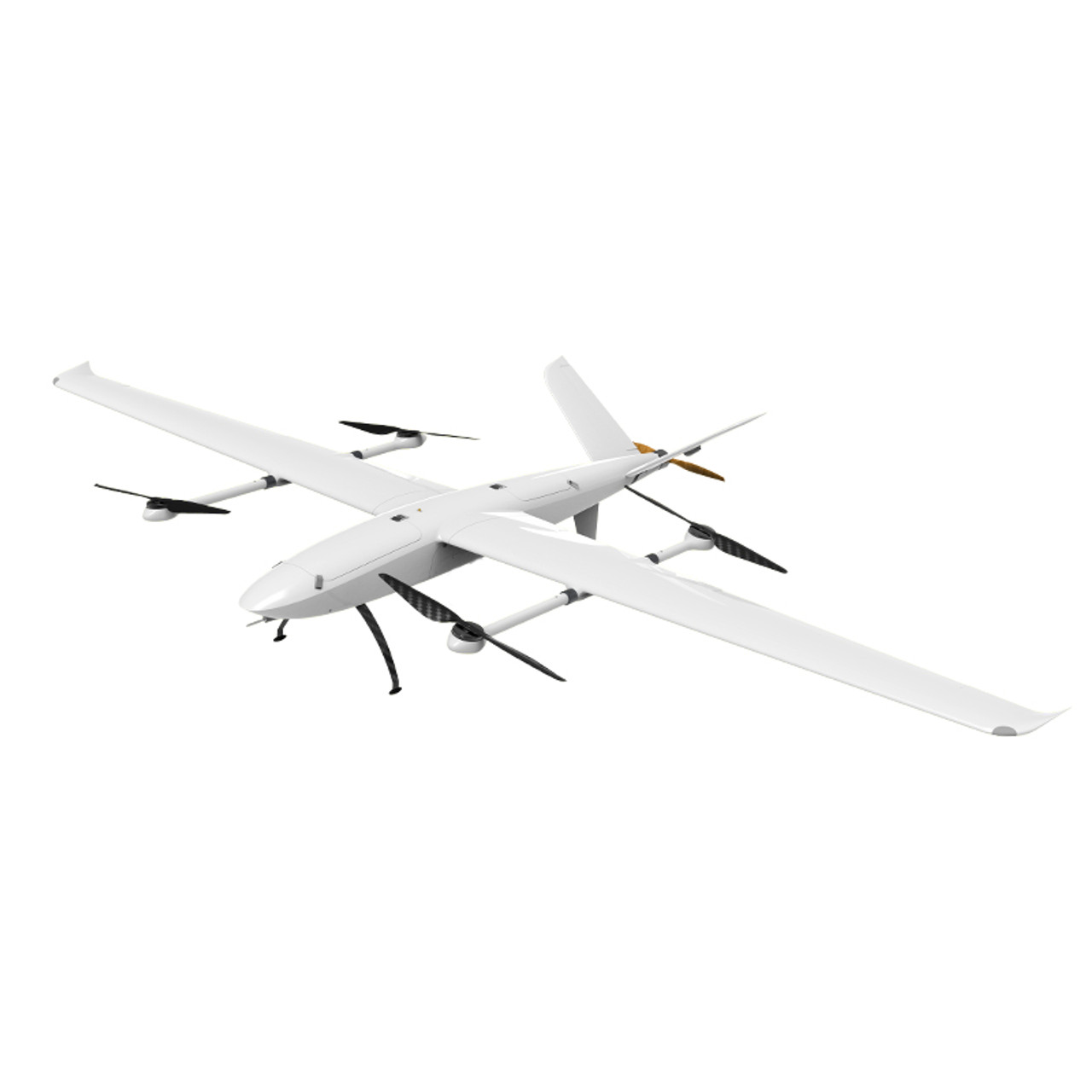

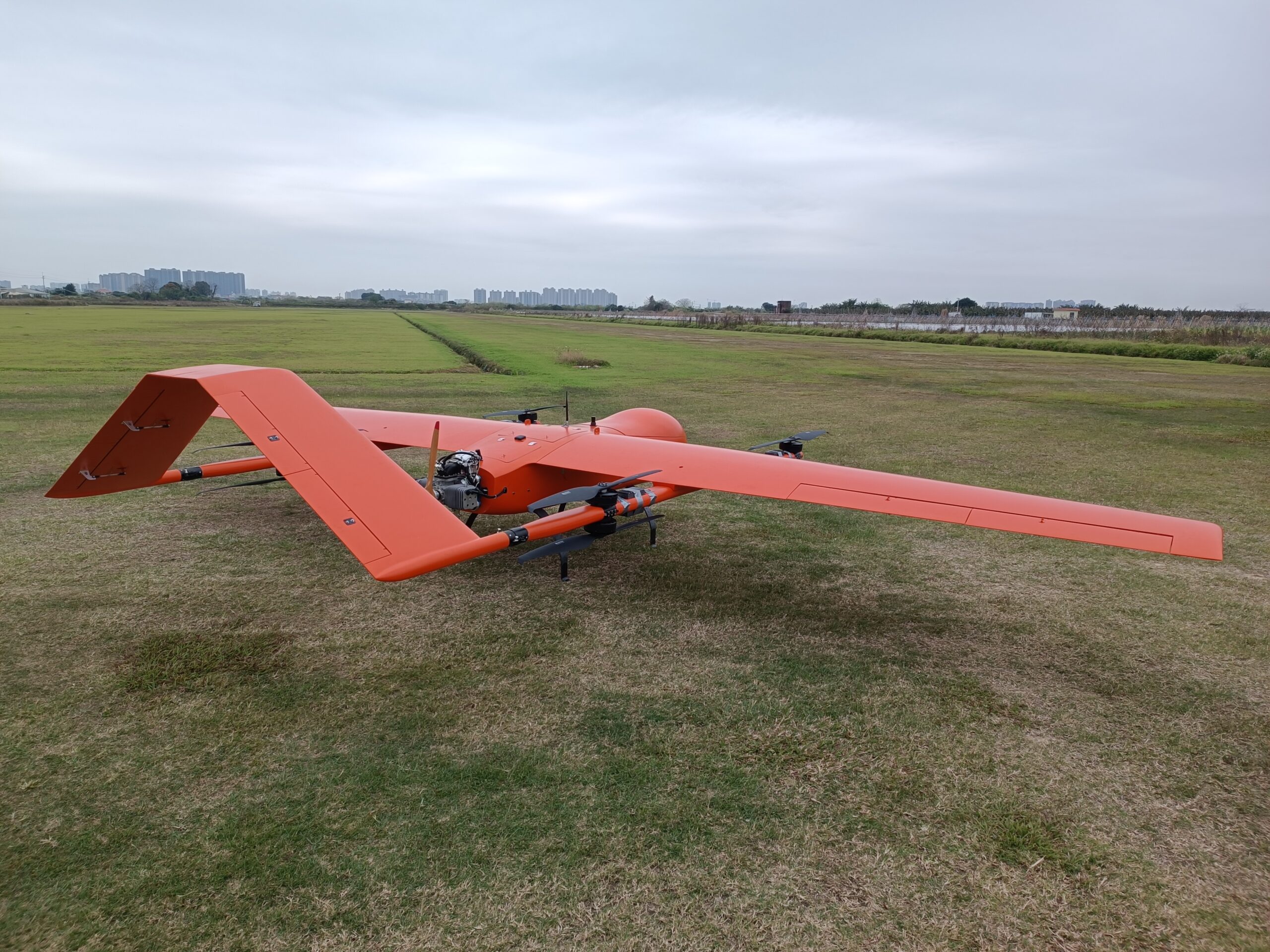

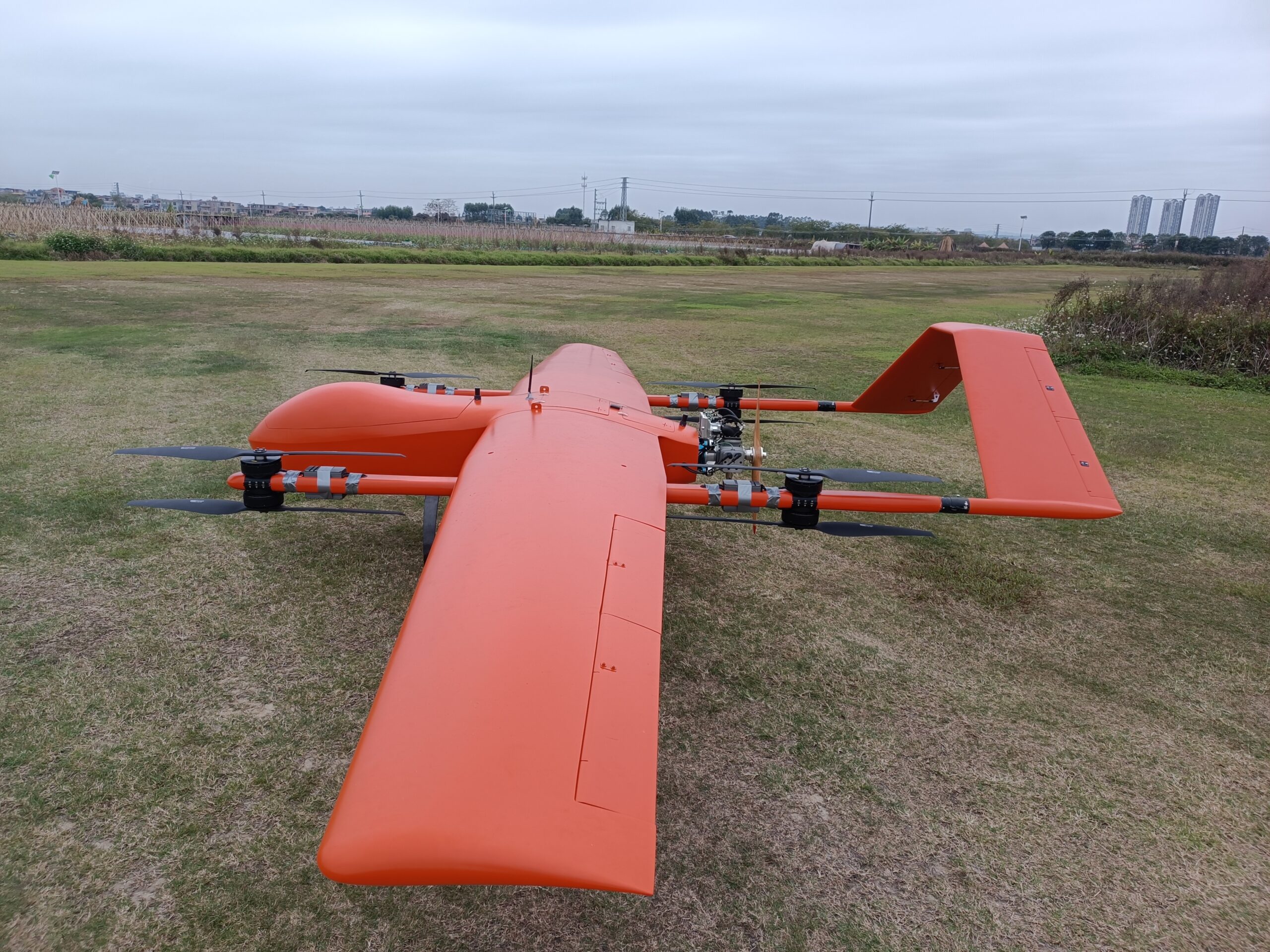

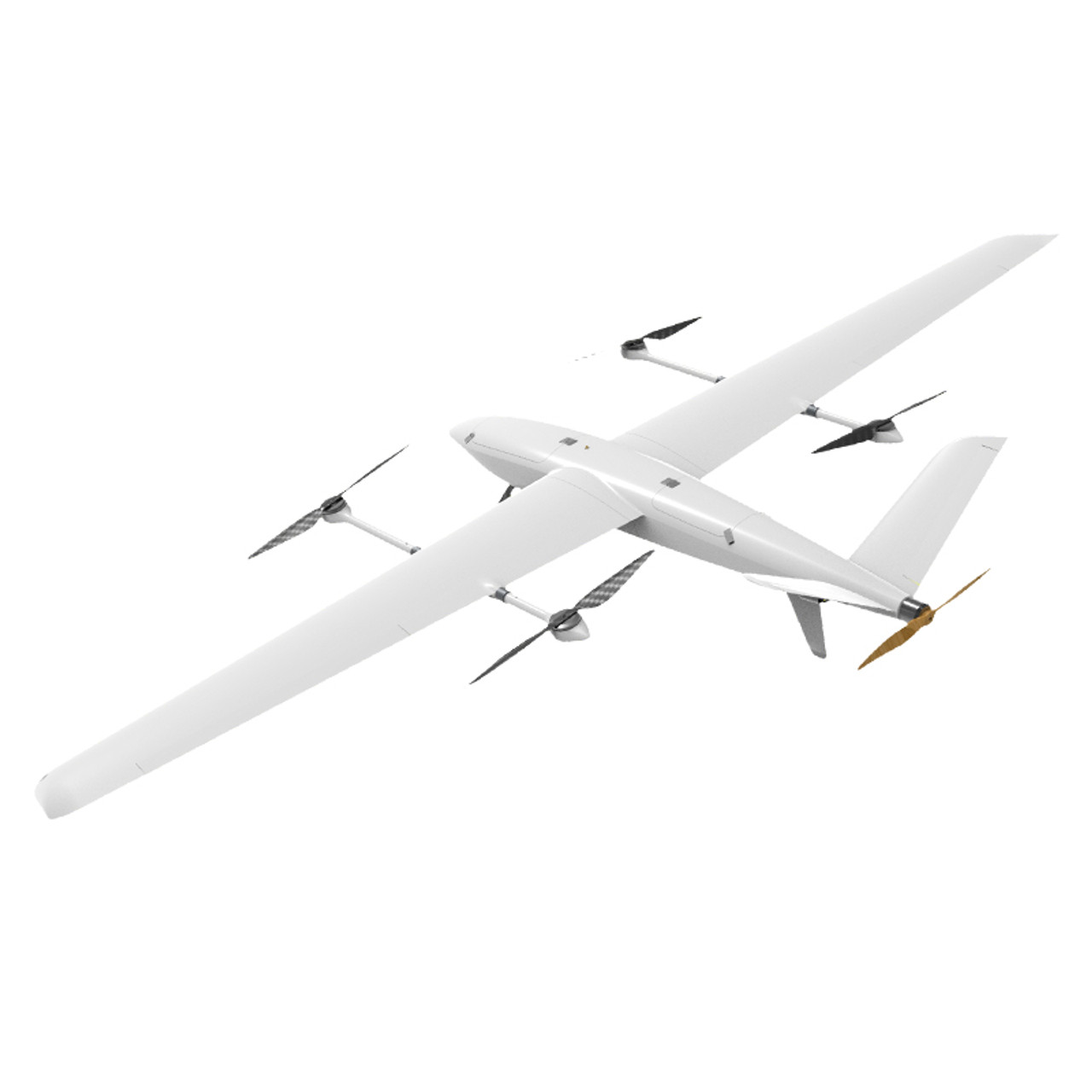

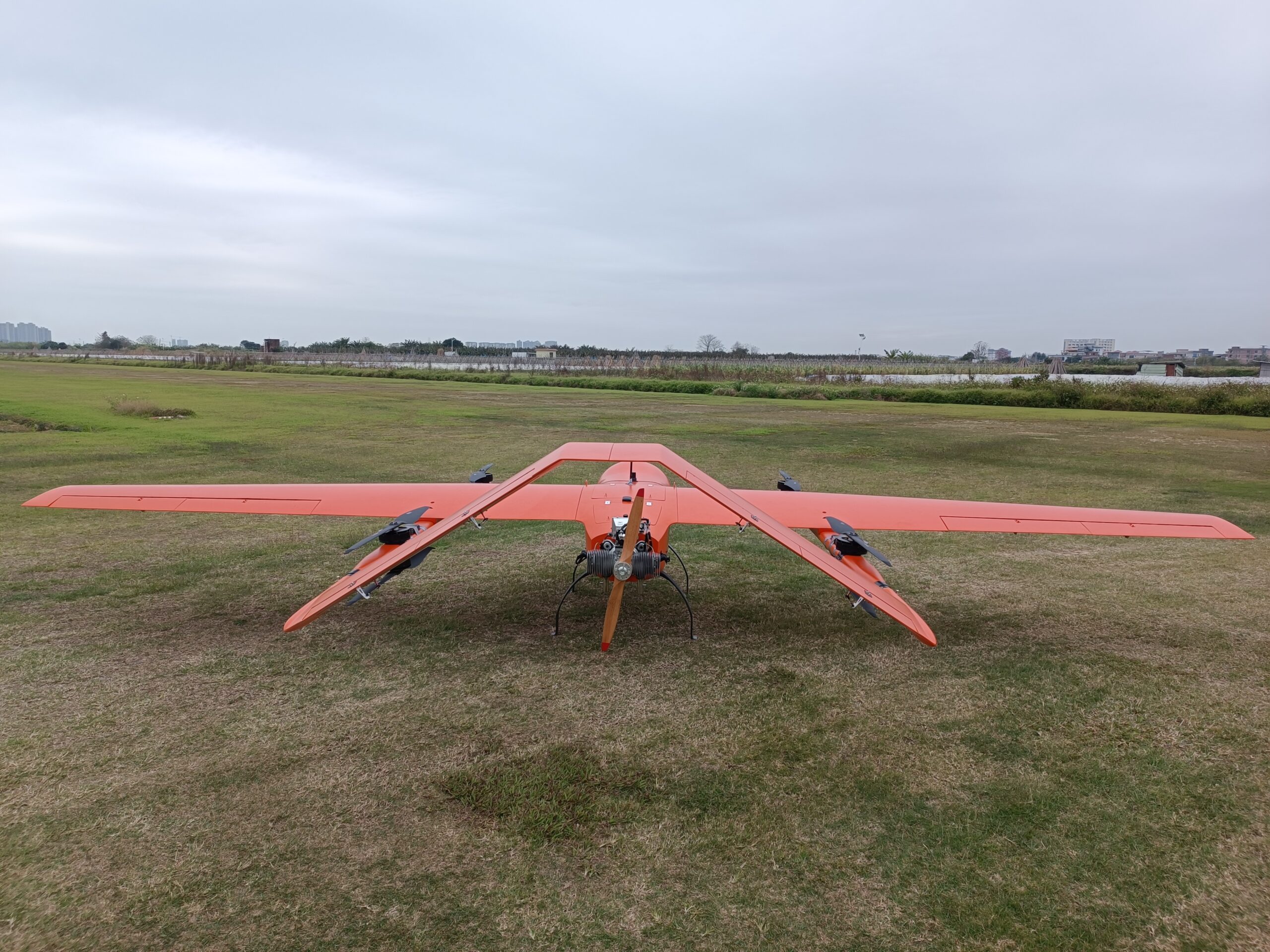

Hybrid vertical take-off and landing composite wing UAV platform—VF200P

Product Description

Fuselage length: 3.85m
Wingspan: 6.66m
Height: 1.26m
Maximum take-off weight: 200kg
Maximum payload: 60kg
Flight time: 4h@50kg payload (speed 120km/h)
Flight radius: 100-400km (depending on fuel load)
Maximum control distance Remote controller (manual control): 1km
Ground station control (depending on the data transmission distance): standard 30km
Maximum speed: 150km/h
Cruising speed: 110-150km/h
Maximum fuel load: 50L
Maximum wind resistance 18m/s (level 8 wind) headwind, fixed-wing state
Usage environment： -10℃+45℃
Vertical take-off/landing power battery: 8*6050mAh-24S lithium battery
Take-off and landing method: Vertical take-off and landing
