HEX Cube+ PIXHAWK2 Dual Core Drone Agriculture Spraying High Performance H7 ADS-B HERE3+ GNSS Orange Mini 2 Compatible Remote
Original price was: 630.00$.590.00$Current price is: 590.00$.
Product Description
|

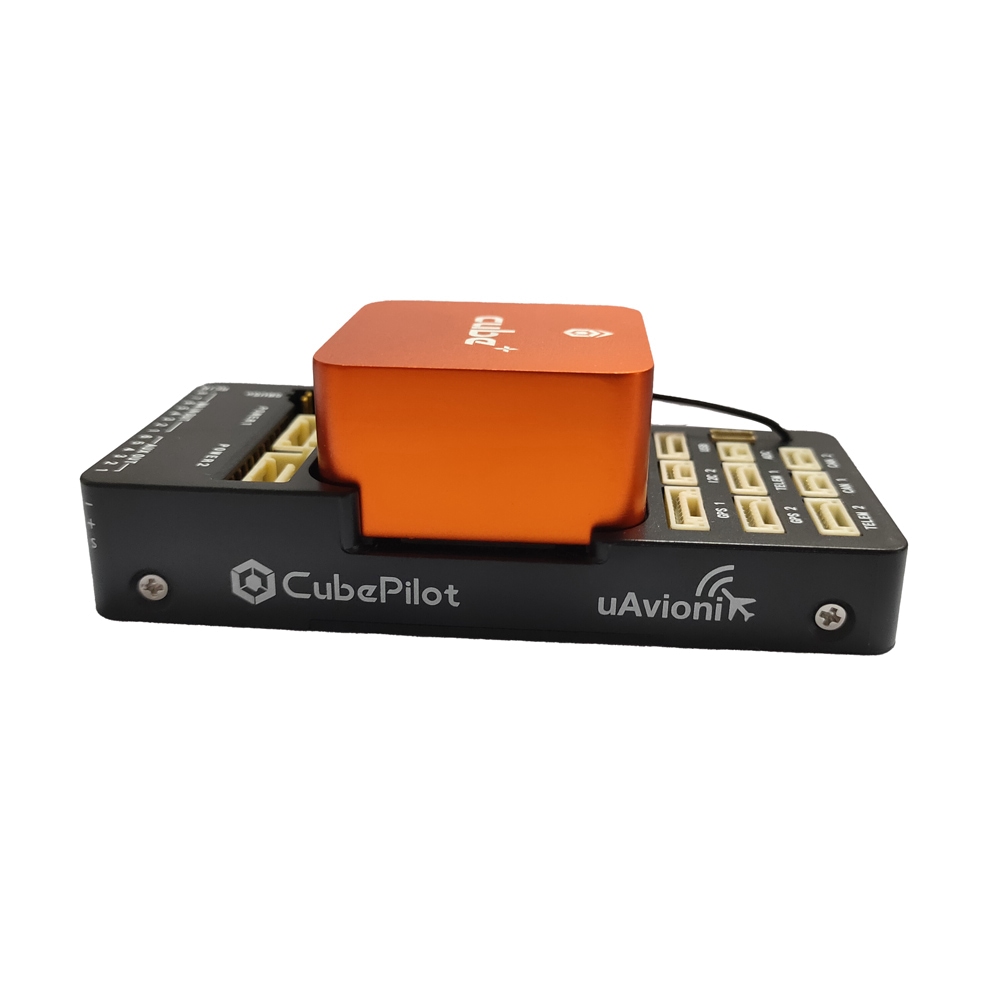

Cube Orange +
|
|
|
Main Processor：
|
STM32H757（The new chip has good performance）
|
|
Coprocessor：
|
STM32F1
|
|
Supported RC signals：
|
PPM/SBUS/DSM
|
|
Power redundancy：
|
Triple redundancy
|
|
Sensors：
|
Triple IMU System
|
|
Sensors details：
|
ICM20649(integrated accelerometer+gyroscope)
ICM20602(integrated accelerometer+gyroscope)
ICM20948(integrated
accelerometer+gyro+magnetometer) MS5611 x 2(Baro)
|
|
Firmware ：
|
Not supported PX4 open source flight controller firmware
|
|
Supported vehicle types：
|
Fixed-wing planes、Copters with 3-8 motors、Helicopters、VTOL-planes、Rovers/boats/submarines
|
|
Weight：
|
73g
|
|
Chassis Material：
|
CNC Aluminum Alloy(cube)+ABS Molding(Carrier Board)
|
|
Size cube：
|
38.4×38.4x22mm
|
|
Carrier Board：
|
94.5×44.3×17.3mm
|
|
Operating temperature：
|
-10~+55° IMU with temperature control
|
|
PWM I/Os：
|
14
|
|
Mavlink serial interface：
|
2
|
|
Number of GPS supported：
|
2
|
|
Debug interface：
|
1
|
|
I2C interface：
|
1
|
|
CAN interface：
|
2
|
