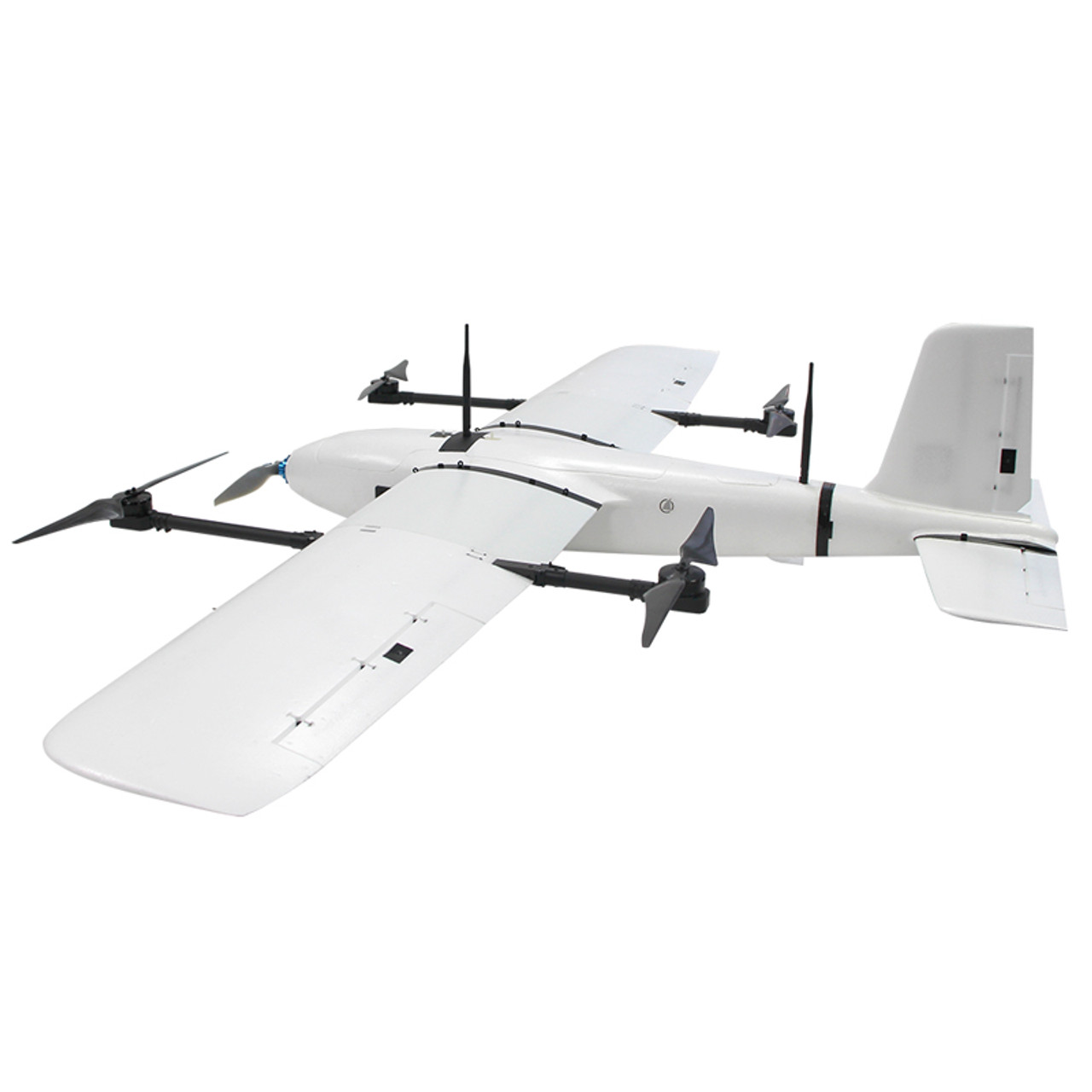

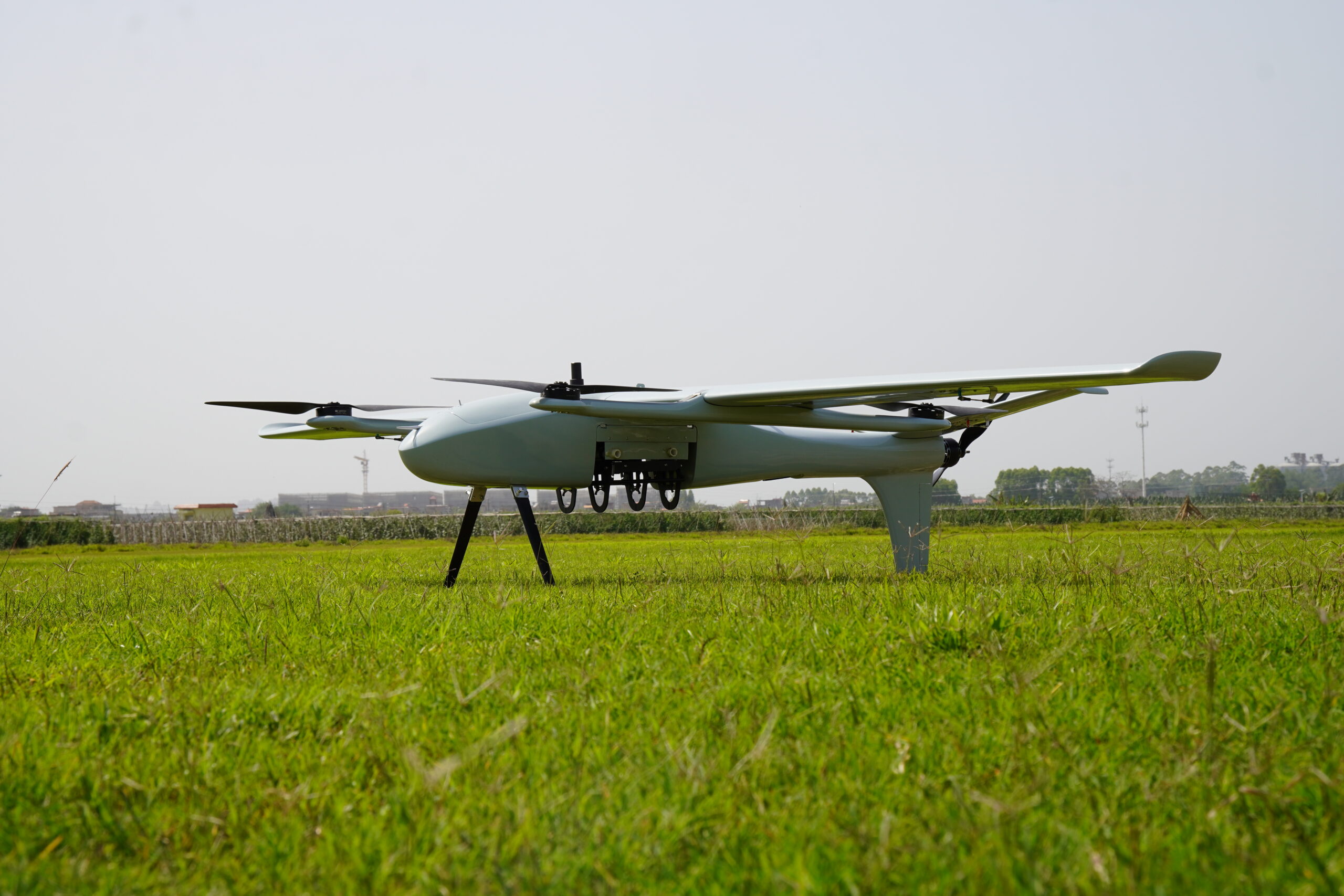

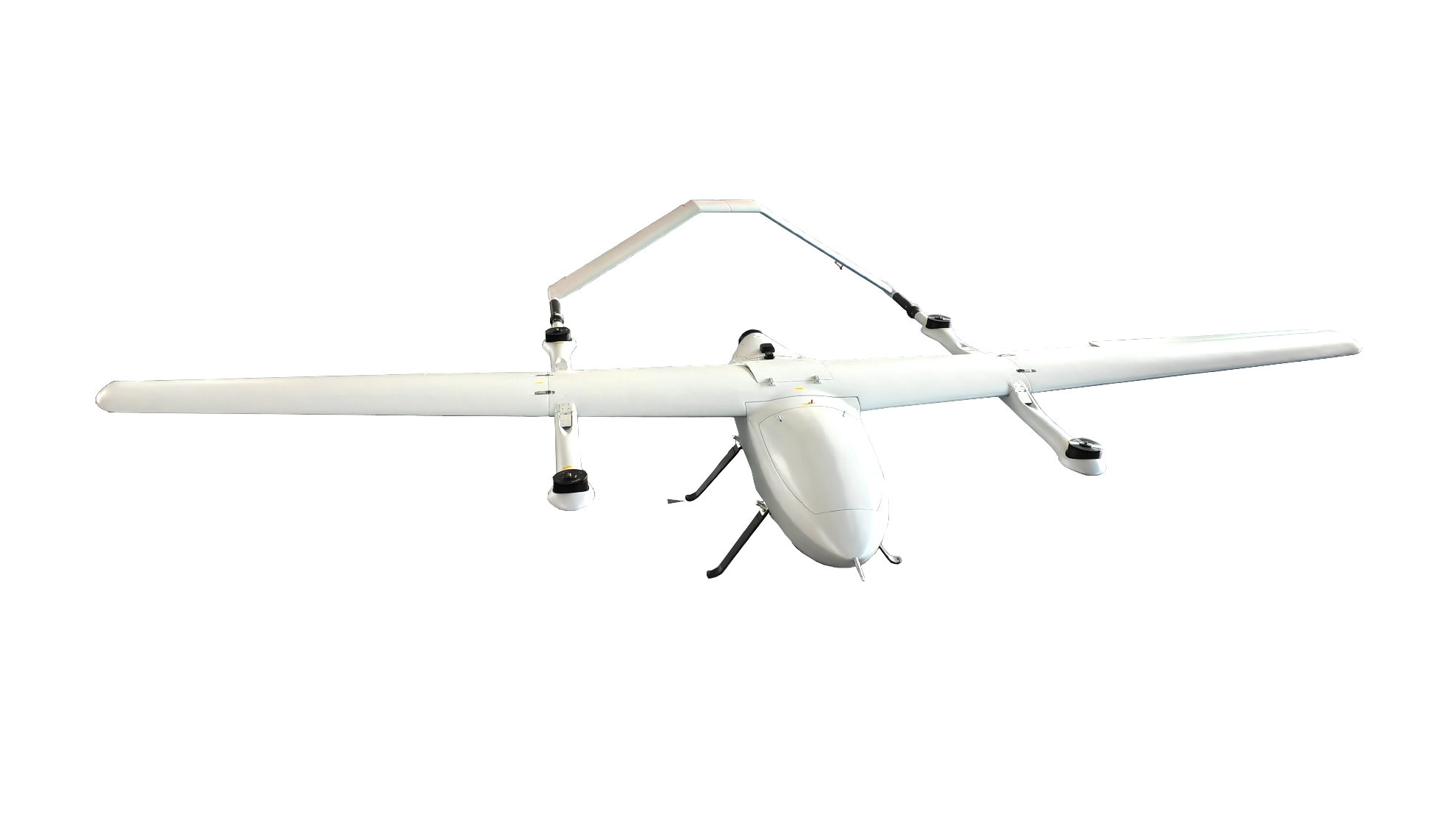

320 VTOL Fixed Wing UAV Drone Survey and Rescue with Easy Changeable Payload Bin Long Flight Time Endurance with High Payload
Original price was: 25,999.00$.19,999.00$Current price is: 19,999.00$.
Product Description
| category | Vertical take-off and landing composite wing drone | Power system | V605KV210+AT7215KV220 |
| Empty weight | ＜6kg | battery | 12S battery |
| material | Autoclave-molded all-composite materials | Flight speed | 80-120km/h |
| Take-off and landing method | Vertical Take-Off and Landing | Cruising speed | 85-95km/h |
| Maximum take-off weight | 30kg | Wind resistance | Level 4 (take-off and landing phase) Level 6 (fixed-wing cruise phase) |

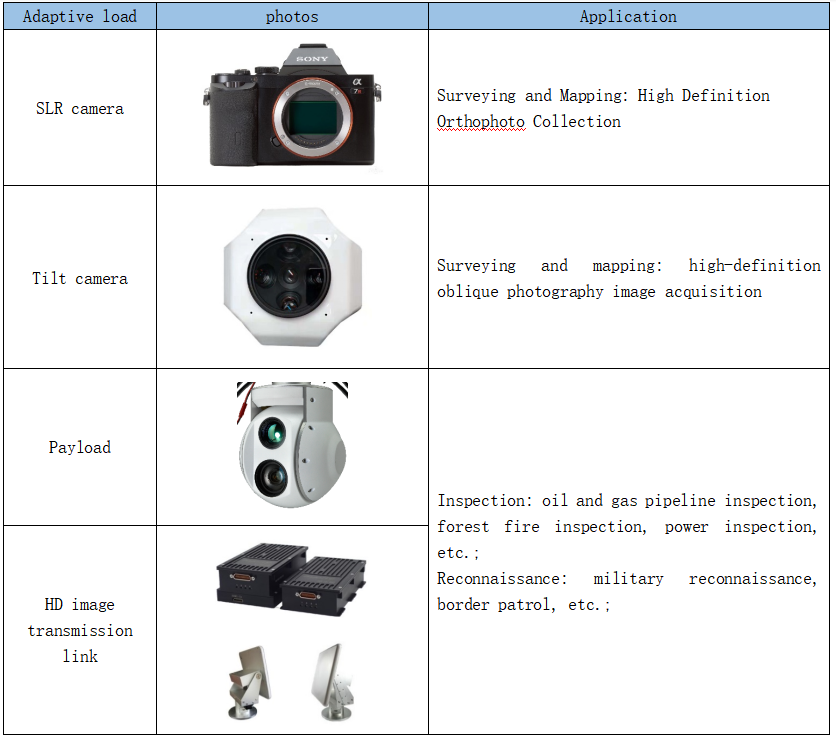

| Payload | <10kg | Endurance Time | ＞260min（with 2.5kg payload） |
| Size | Wingspan 3.6m, length 1.82m (1.89m with pitot tube), belly ground clearance >160mm
Fuse: Carbon fiber composite PVC foam sandwich Wing: Kevlar composite PVC foam sandwich Vertical take-off and landing arm: 3K carbon fiber |
||

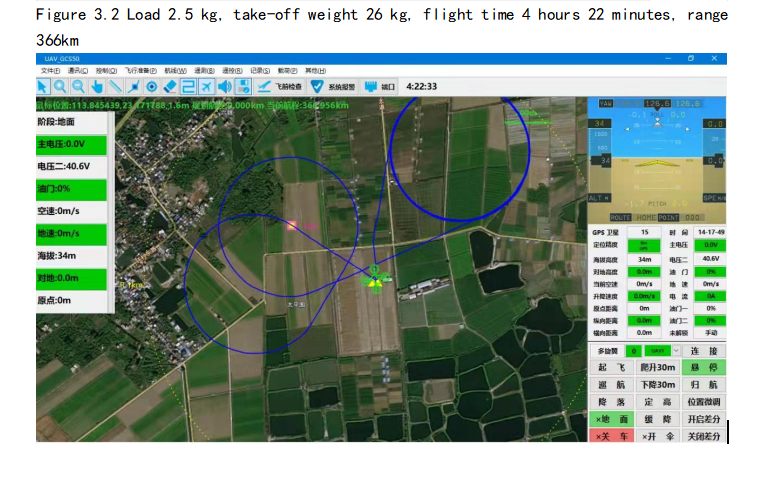

| Flight date | Take-off weight: 26 kg, payload: 2.5 kg
Cruise speed: 90 km/h, cruising time > 260 min, range 366 km The above data are tested at an altitude of 10 meters, a flight altitude of 150 meters, and a wind speed of 3.4-7.0 m/s |
||

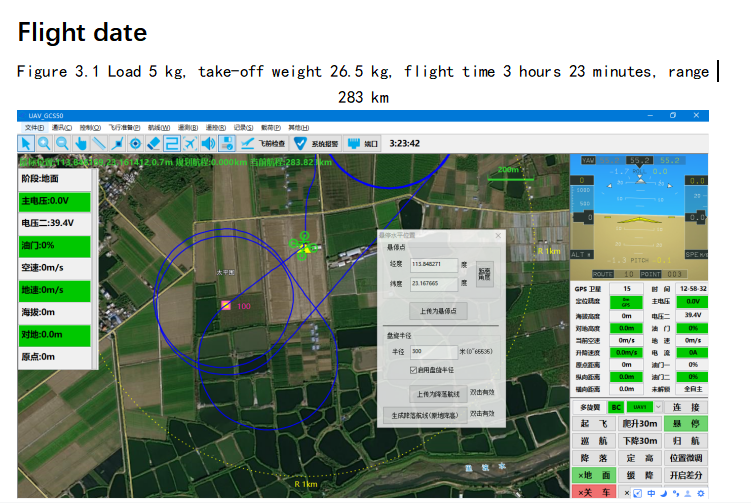

| Take-off weight: 26.5 kg, payload: 5 kg
Cruise speed: 90 km/h, cruise time > 200 min, range 283 km The above data are tested at an altitude of 10 meters, a flight altitude of 150 meters, and a wind speed of 3.4-7.0 m/s |
|||
| Take-off weight: 32 kg, payload: 10 kg
Cruise speed: 90 km/h, cruise time > 120 min, range 196 km The above data are tested at an altitude of 10 meters, a flight altitude of 150 meters, and a wind speed of 3.4-7.0 m/s |
|||
| Flight box size | 1870*520*560mm；0.55^m3（≤65KG） | ||
